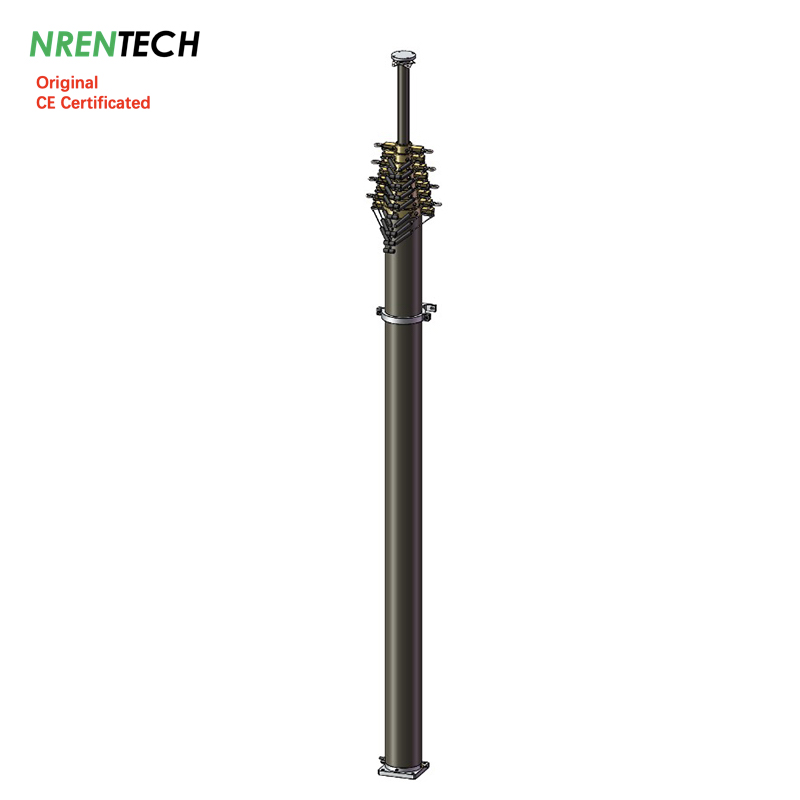

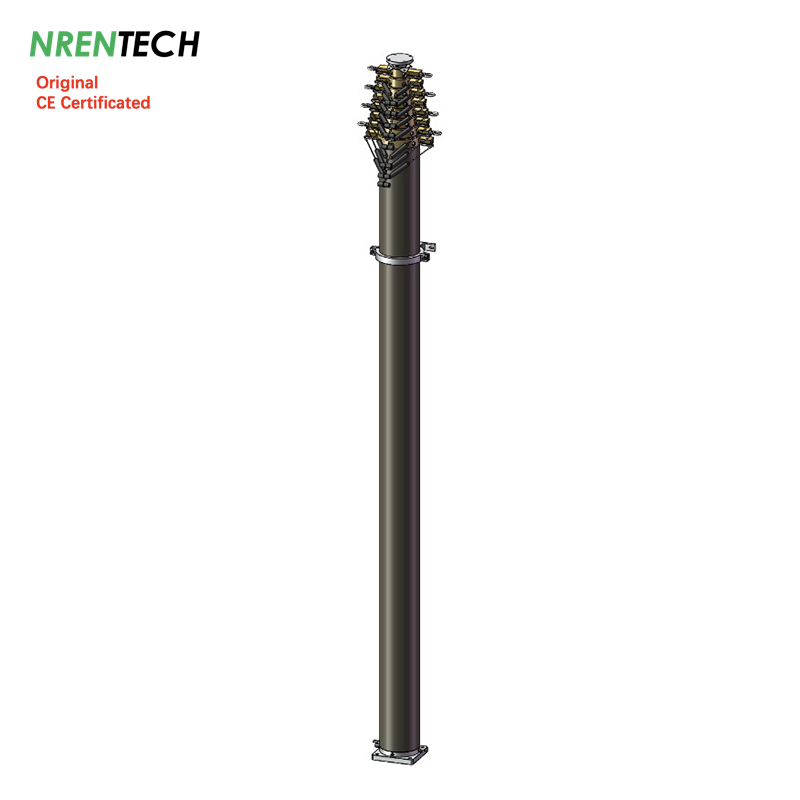

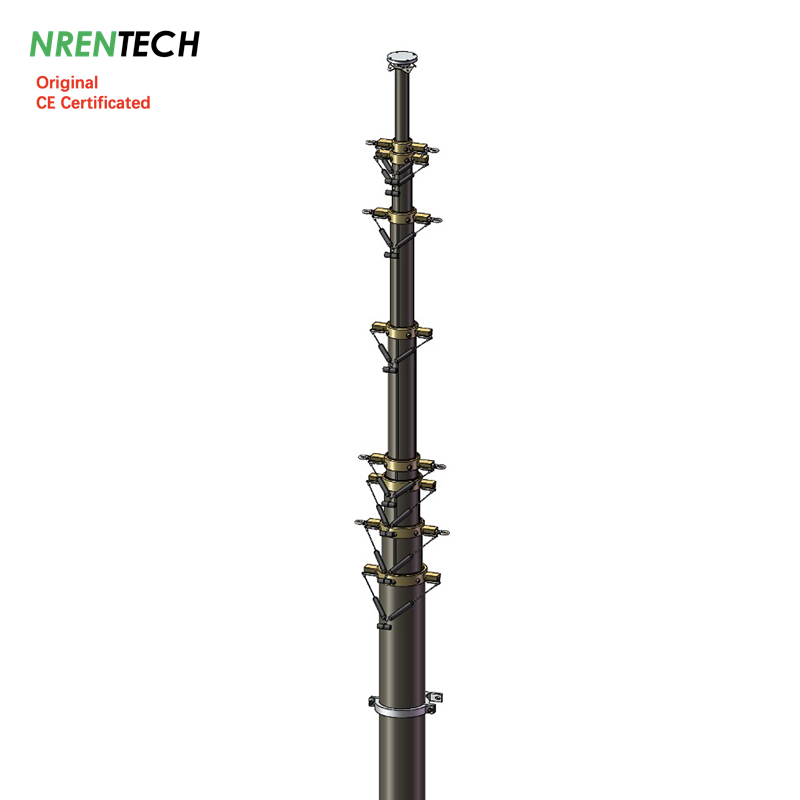

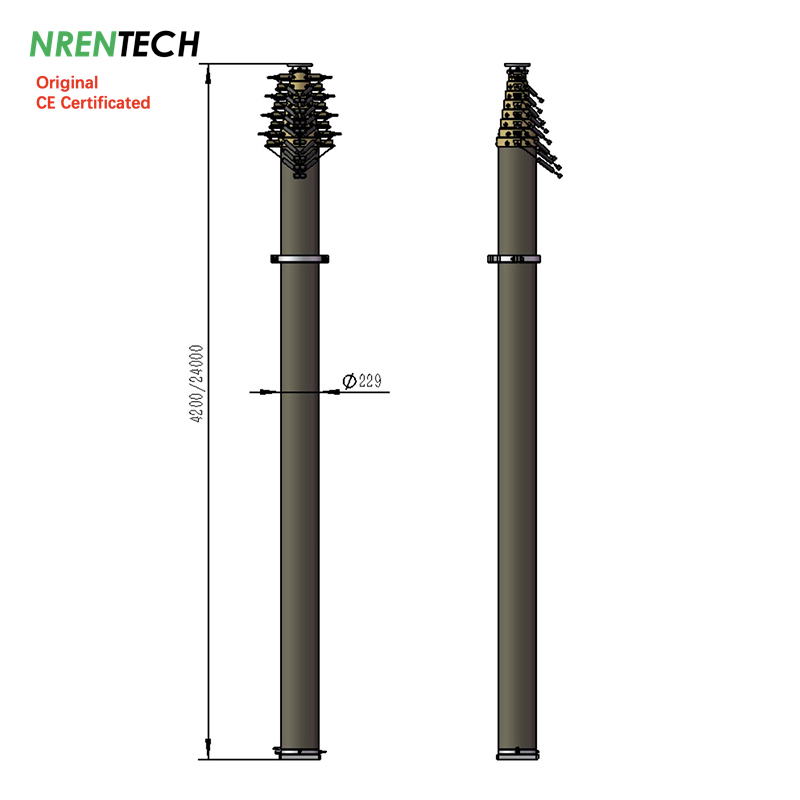

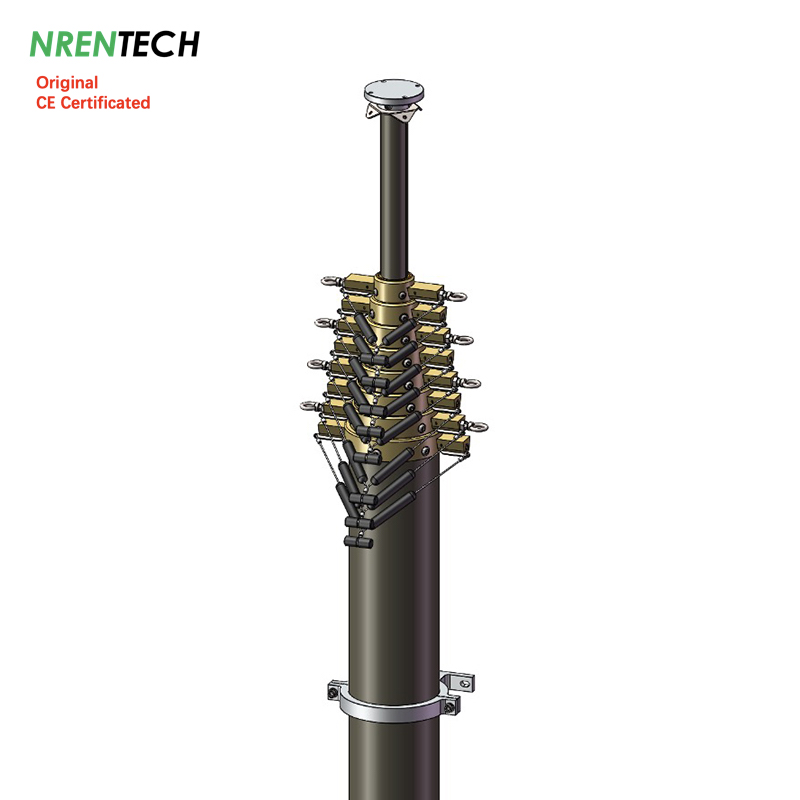

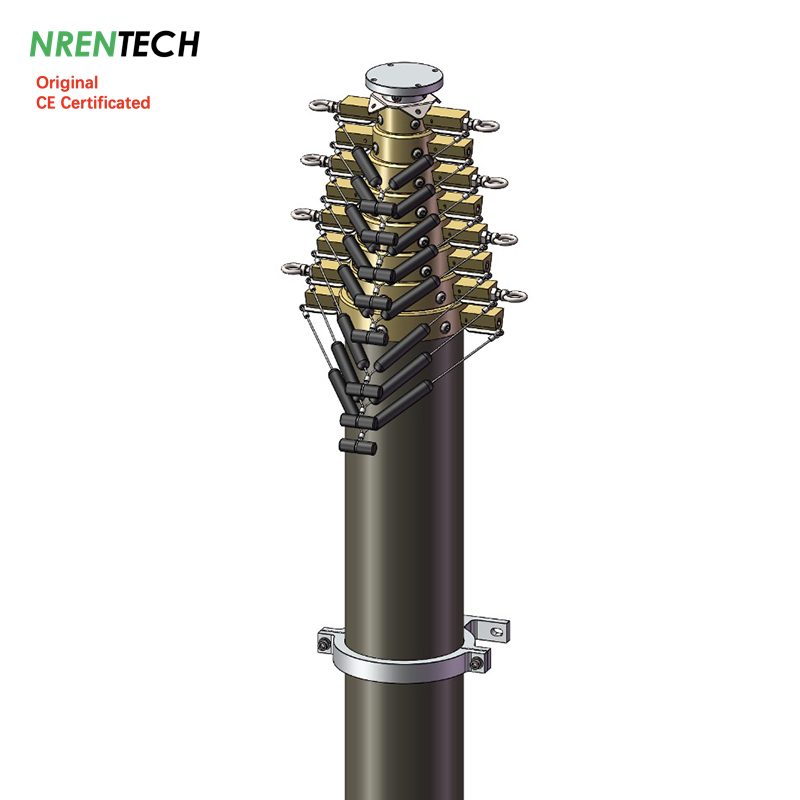

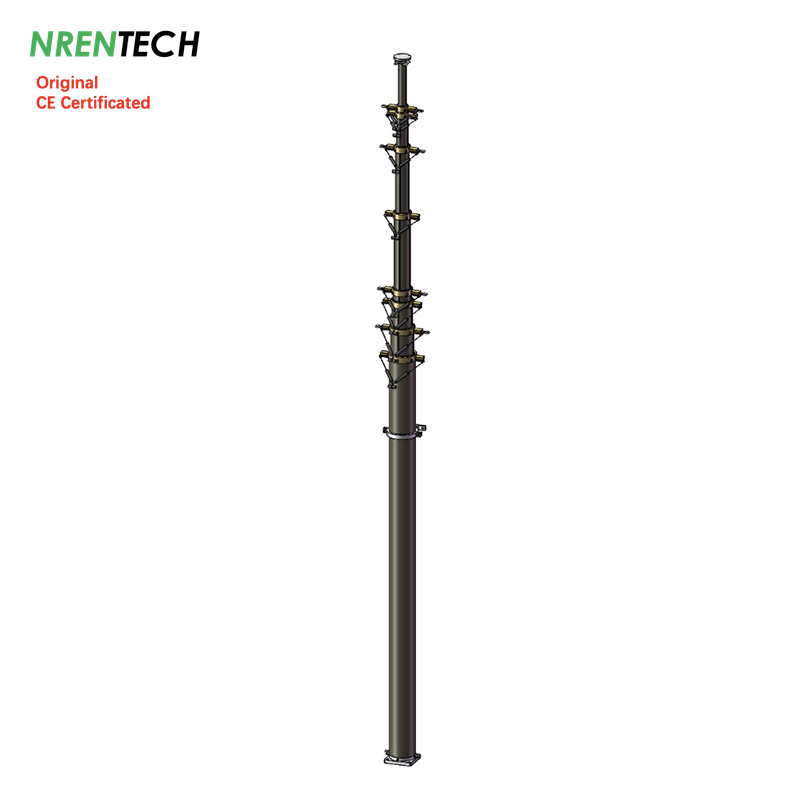

24m Locking Mast 50kg payload 4m Closed Height NR-4.2-24-50L-9S-66-229
❤ Add to collection

24m Locking Mast 50kg payload 4m Closed Height NR-4.2-24-50L-9S-66-229

24m Locking Mast 50kg payload 4m Closed Height NR-4.2-24-50L-9S-66-229

Item code: NR-4.2-24-50L-9S-66-229

1> Extended Height: 24m

2> Nest Height: 4.2m

3> Vertical payload: 50kg @0.25Mpa/36PSI

4> Type: lockable type (automatic extension, retraction by manual operating)

5> Number of sections: 9 sections

6> Section diameter: 66mm~229mm

7> Materials: Aluminum alloy 6063T5, Hard Anodizing Treatment

8> Mast weight: 252kg approx.

9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, 1x air hose pipe, 1x retraction operating tool, guy ropes mounting plate and eyebolts.

10> Wind load: 60N/m^2 (without guy ropes)

Charging accessories:
side mounting bracket NR-S229, aluminum material
Rotation basement NR-R229 (manual rotation)
Guy lines kit: 5 layers, 4 ropes each layer, 4 mounting stakes, mounting radius 24m
Ground mounting quadpod bracket: NR-QUADPOD229
Electric air compressor: AC220V/50hz, 1500W, 12L air tank
Remote control kit: AC220V/50hz


Guarantee: 2 years
Manufacture time: 30 days
Data updated on 20260310

U.S.＄0.00
0.00
U.S.＄0.00
U.S.＄0.00
Weight：0.000KG
Quantity：
(Inventory: 99999)
Buy now
Add to cart
Products Description

24m Locking Mast 50kg payload 4m Closed Height NR-4.2-24-50L-9S-66-229

Item code: NR-4.2-24-50L-9S-66-229

1> Extended Height: 24m

2> Nest Height: 4.2m

3> Vertical payload: 50kg @0.25Mpa/36PSI

4> Type: lockable type (automatic extension, retraction by manual operating)

5> Number of sections: 9 sections

6> Section diameter: 66mm~229mm

7> Materials: Aluminum alloy 6063T5, Hard Anodizing Treatment

8> Mast weight: 252kg approx.

9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, 1x air hose pipe, 1x retraction operating tool, guy ropes mounting plate and eyebolts.

10> Wind load: 60N/m^2 (without guy ropes)

Charging accessories:
side mounting bracket NR-S229, aluminum material
Rotation basement NR-R229 (manual rotation)
Guy lines kit: 5 layers, 4 ropes each layer, 4 mounting stakes, mounting radius 24m
Ground mounting quadpod bracket: NR-QUADPOD229
Electric air compressor: AC220V/50hz, 1500W, 12L air tank
Remote control kit: AC220V/50hz


Guarantee: 2 years
Manufacture time: 30 days
Data updated on 20260310

24m Lockable Pneumatic Telescopic Mast 50kg payload 4.2m closed height

Item code: NR-4.2-24-50L-9S-66-229

1> Extended Height: 24m

2> Nest Height: 4.2m

3> Vertical payload: 50kg @0.25Mpa/36PSI

4> Type: lockable type (automatic extension, retraction by manual operating)

5> Number of sections: 9 sections

6> Section diameter: 66mm~229mm

7> Materials: Aluminum alloy 6063T5, Hard Anodizing Treatment

8> Mast weight: 252kg approx.

9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, 1x air hose pipe, 1x retraction operating tool, guy ropes mounting plate and eyebolts.

10> Wind load: 60N/m^2 (without guy ropes)

Charging accessories:
side mounting bracket NR-S229, aluminum material
Rotation basement NR-R229 (manual rotation)
Guy lines kit: 5 layers, 4 ropes each layer, 4 mounting stakes, mounting radius 24m
Ground mounting quadpod bracket: NR-QUADPOD229
Electric air compressor: AC220V/50hz, 1500W, 12L air tank
Remote control kit: AC220V/50hz


Guarantee: 2 years
Manufacture time: 30 days
Data updated on 20260310
