Products Description

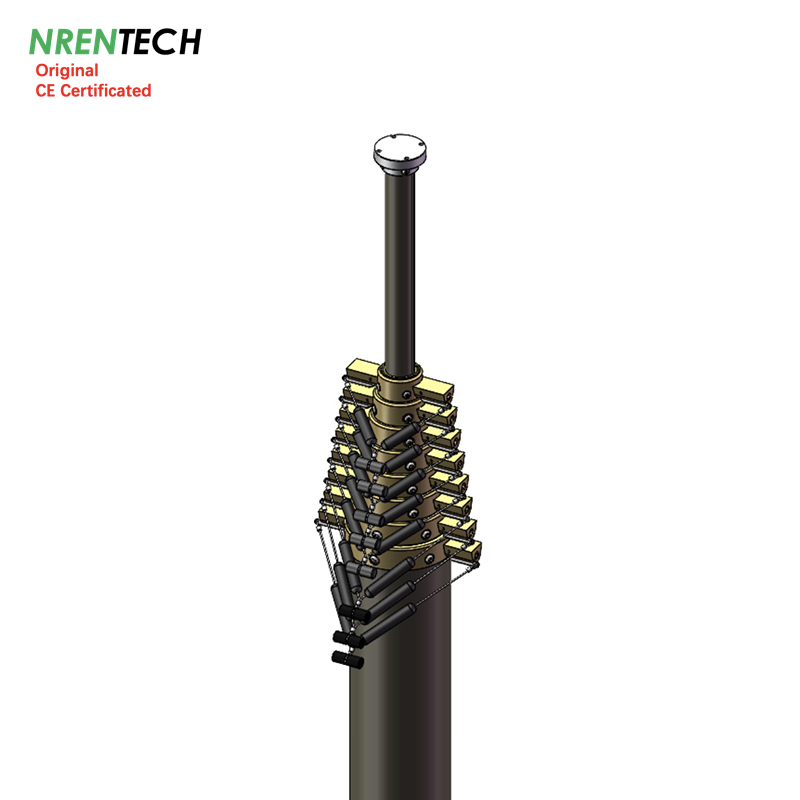

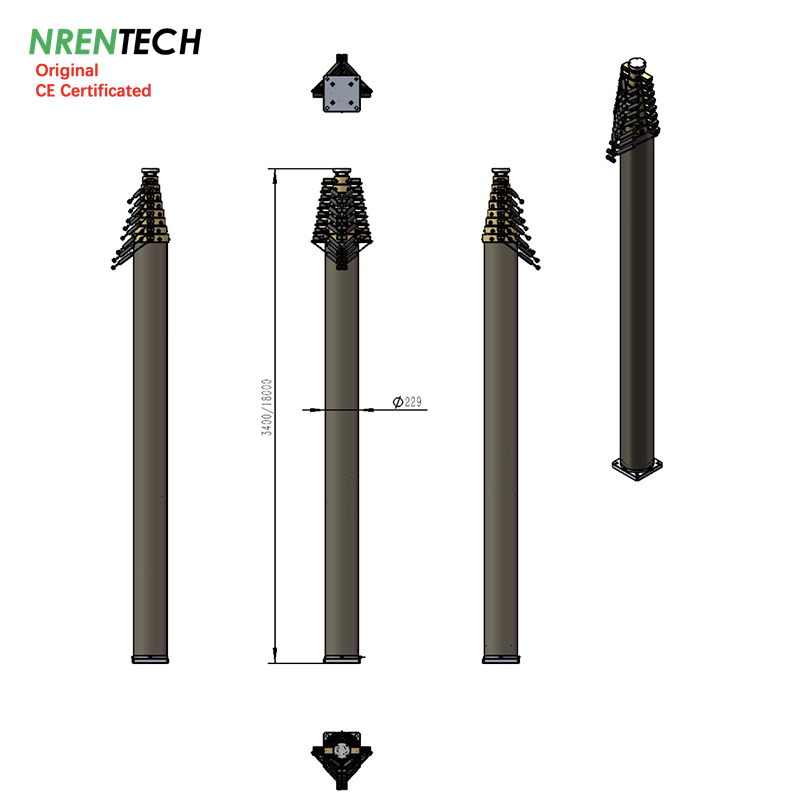

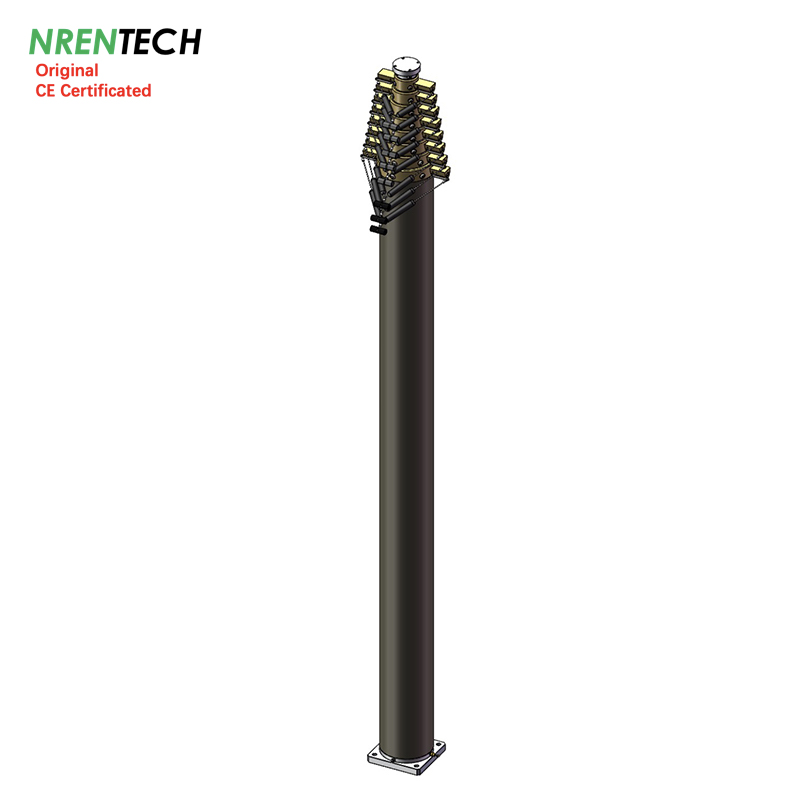

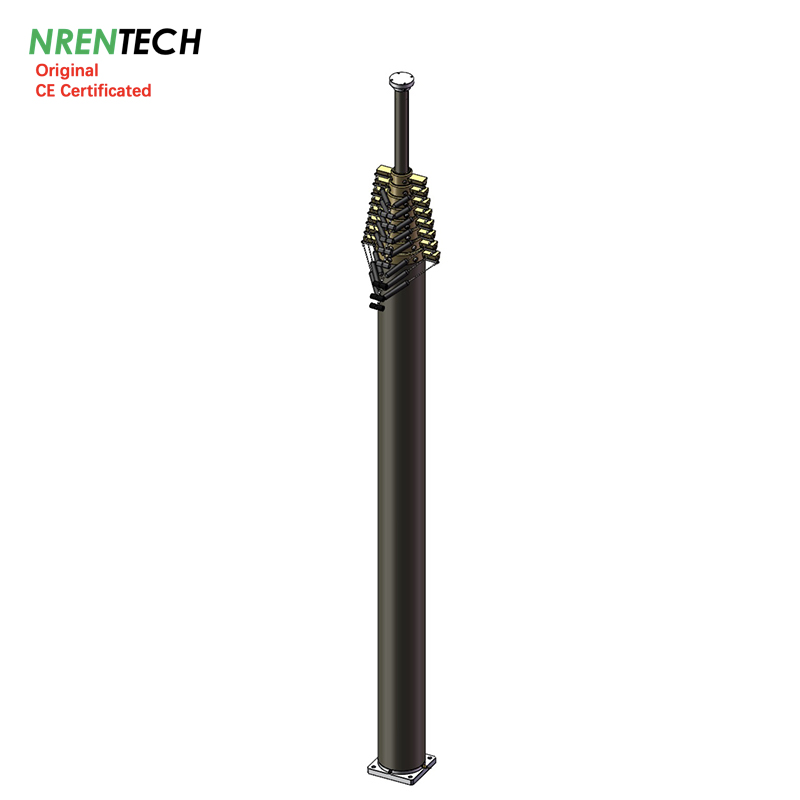

18m Lockable Mast 50kg payloads-3.4m closed height
18m Locking Pneumatic Telescopic Mast-50kg Payloads
Item #: NR-3.4-18-50L-9S-66-229
1> Retracted Height: 3.4m
2> Extended Height: 18m
3> Vertical Payloads: 50kg
4> Rated working air pressure: 0.2Mpa/29PSI
5> Number of sections: 9 sections
6> Section dia.: 66mm~229mm
7> Type: Manual T locking (automatic extension/retraction by manual)
8> Materials: aluminum alloy 6063T5
9> Mast weight: 206kg approx.
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual
11> Guide rope kits, ground mounting quadpod brackets, side mounting bracket, remote control kit, electric air compressor
Application for mobile telecommunication tower
information update on 20230408
| 18m Lockable Pneumatic Telescopic Mast-50kg Payload | ||||||
| NR-3.3-18-50L-8S-66-229 | ||||||
 | ||||||
| Extended Height | : | 18 | m | 59.04 | ft | |
| Retracted Height | : | 3.3 | m | 10.8 | ft | |
| Vertical Payload | : | 50 | kg | 110 | lb | |
| Working air pressure | : | 0.15 | Mpa | 22 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 9 | ||||
| Top section diameter | : | 66 | mm | 2.6 | in | |
| Basement section diameter | : | 229 | mm | 9.0 | in | |
| Mast Weight | : | 201 | kg | 442.2 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 18m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20230627 | ||||||
