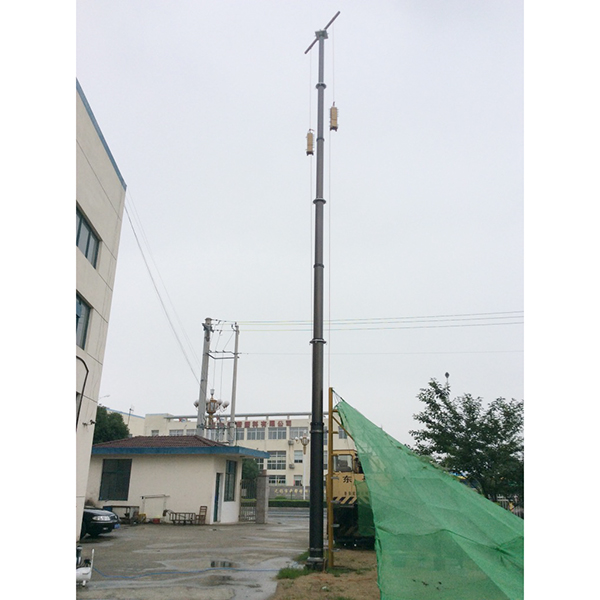

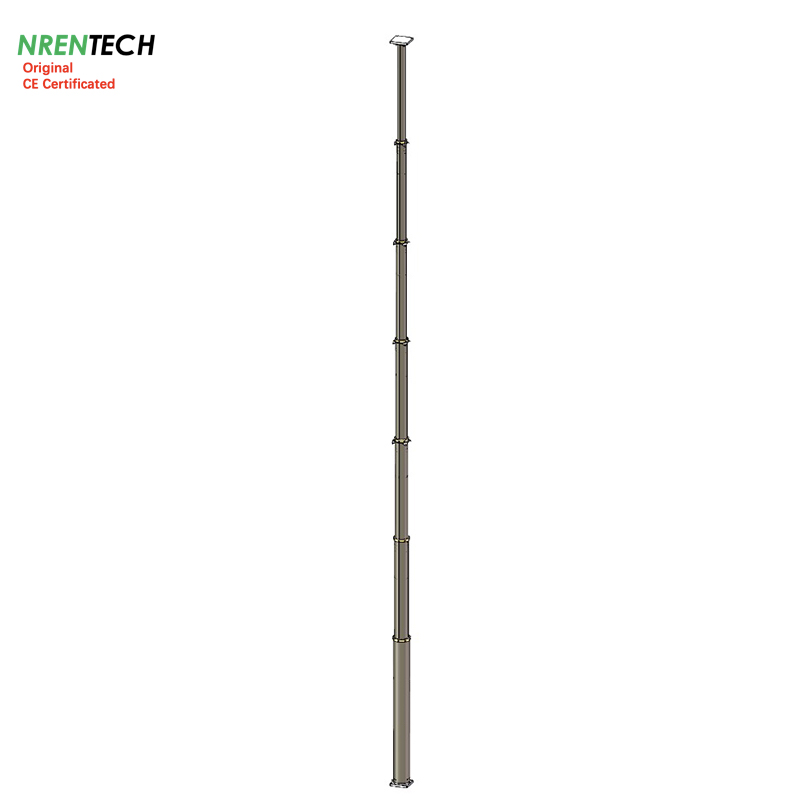

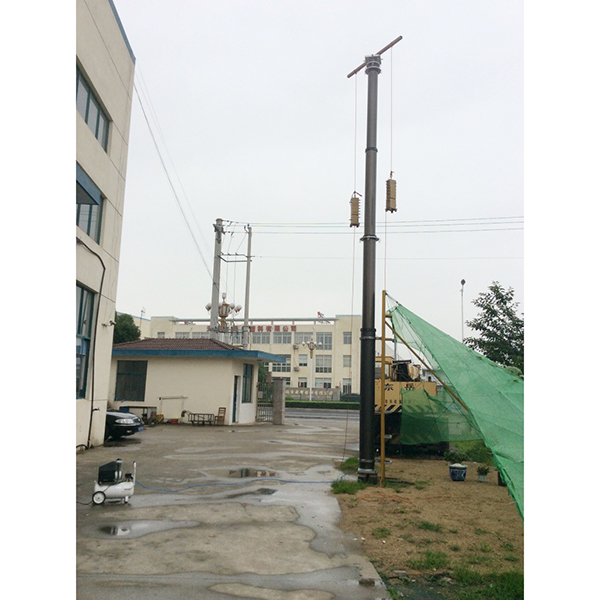

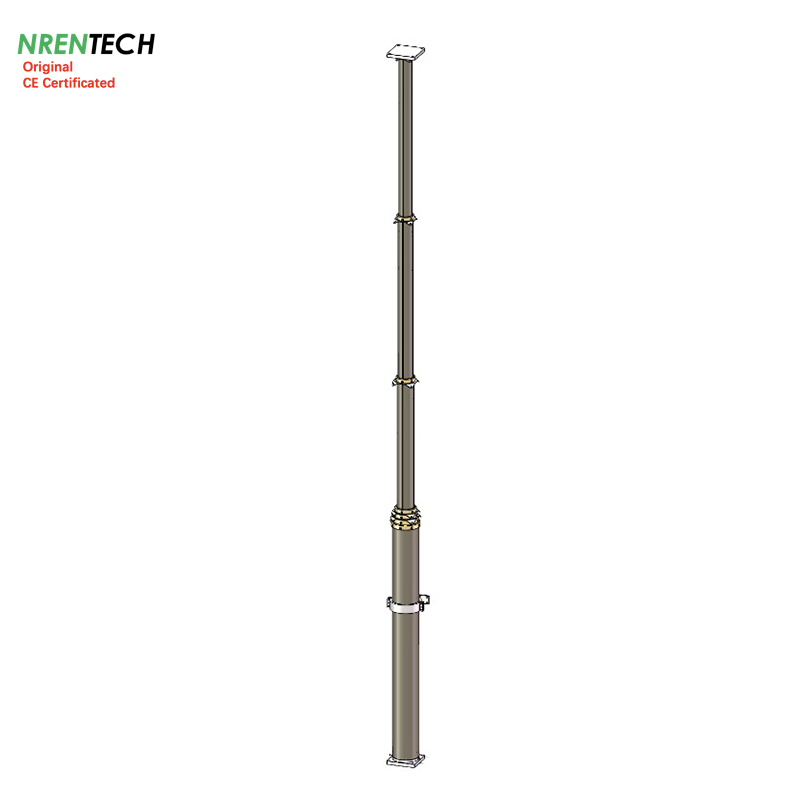

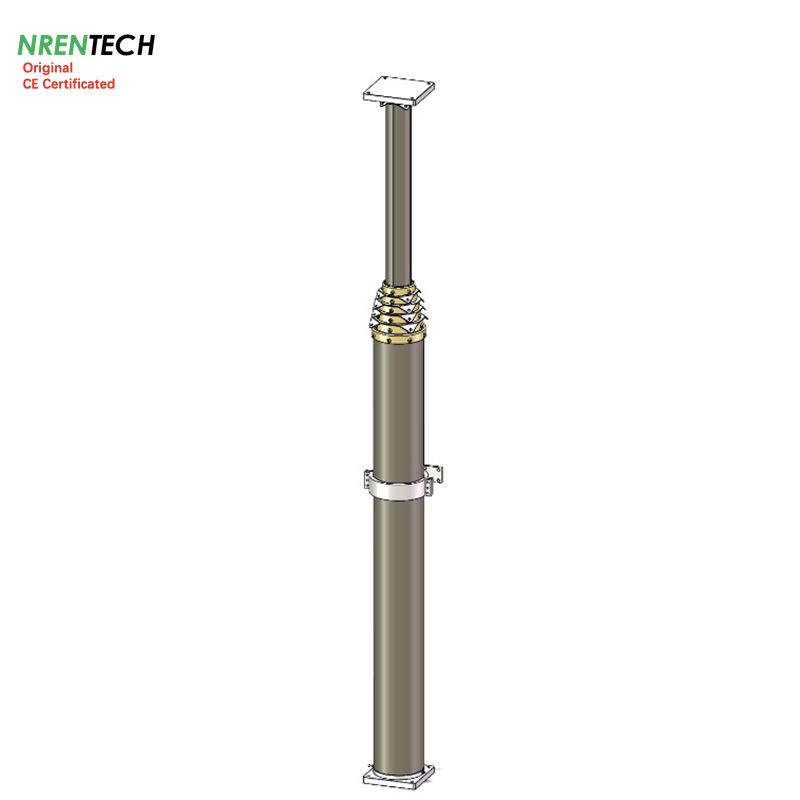

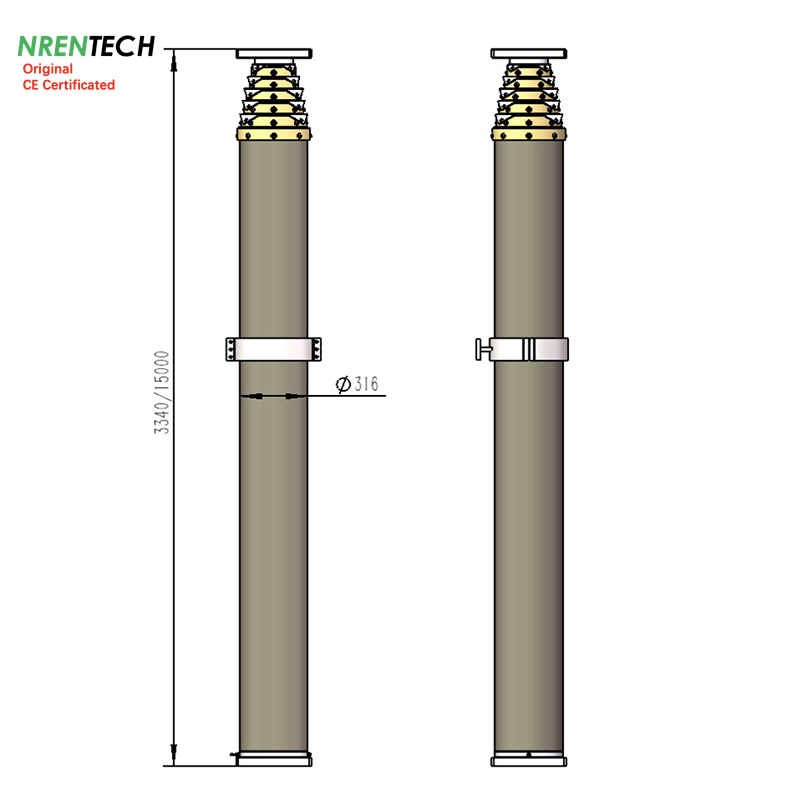

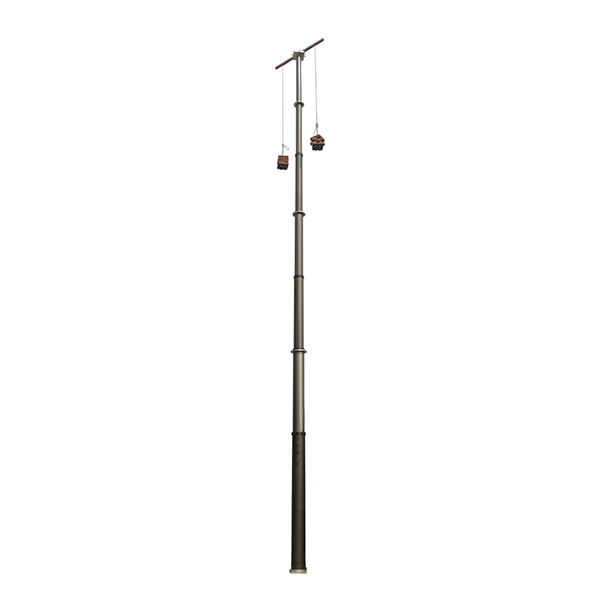

15m Pneumatic Telescopic Mast-400kg payloads

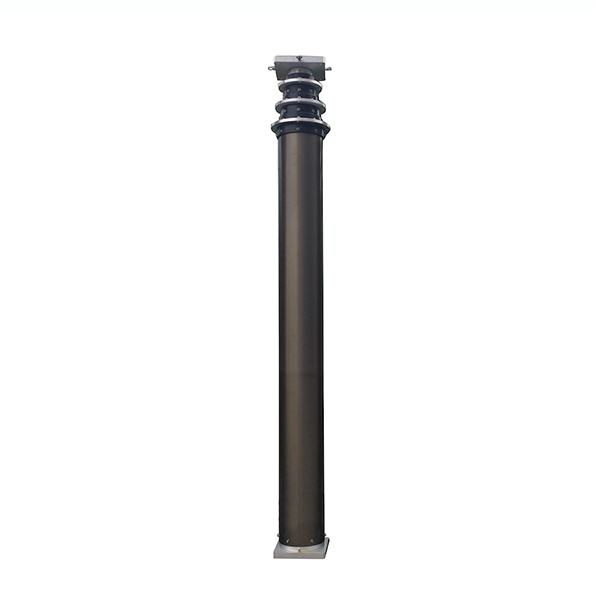

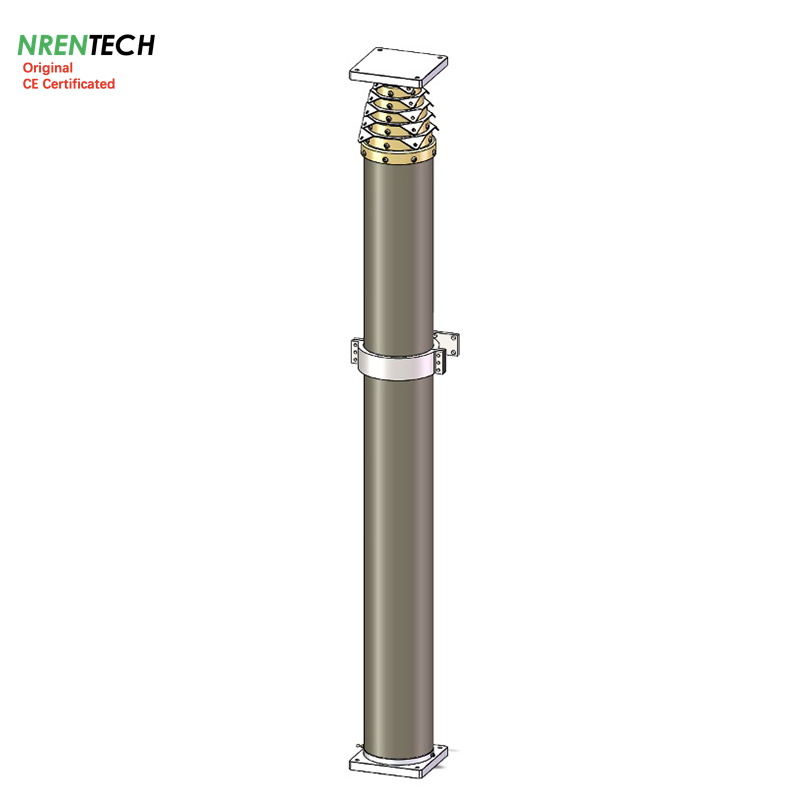

3.4m closed height

This model mast is produced for US and Canada for giant light tower.

1> Item #: NR-3.4-15-400N-7S-160-316
2> Extended Height: 15m
3> Retracted height: 3.4m
4> Payloads: 400kg @0.25Mpa/36 PSI
5> Collar type: non-lockable type, suitable for automatic extension /retraction for remote control
6> Working temperature:-15~85 ℃
7> Number of sections: 7 sections
8> Section dia. 160mm~316mm
9> Collar style: non-locking collar
10> Materials: aluminum alloy 6063T5
11> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve panel, 4x4 guying ropes/wires mounting plate.
12> Mast Weight: 380kg approx.

Optional accessories:
Electric air compressor

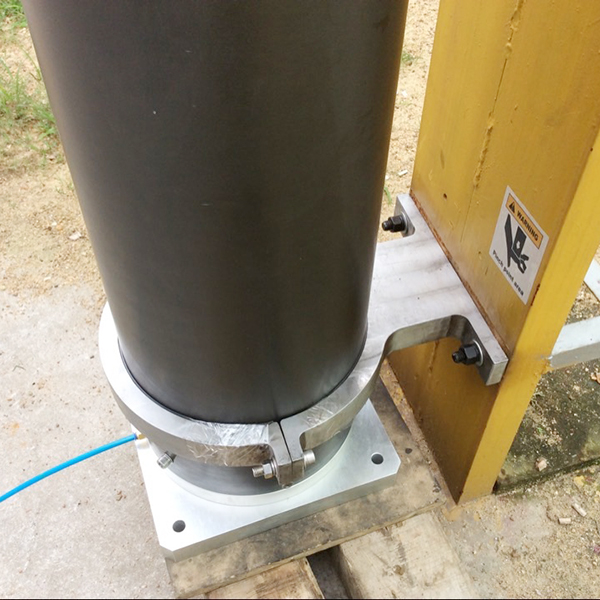

steel side mounting bracket
ground mounting quadpod bracket
remote control kit
guying rope kits with mounting spikes

last updated on 2024-10-15

15m Non-Lockable Pneumatic Telescopic Mast-400kg Payload
NR-3.3-15-400N-7S-160-316
Extended Height	:	15	m	49.2	ft
Retracted Height	:	3.4	m	11.2	ft
Vertical Payload	:	400	kg	880	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Non-Locking (Automatic Extention, Automatic Retraction)
Inside Electric Wires	:
Number of sections	:	7
Top section diameter	:	160	mm	6.3	in
Basement section diameter	:	316	mm	12.4	in
Mast Weight	:	378	kg	832	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
Optional Accessories	:	Electric air compressor			AC220~240V/50hz/60Hz
		Guying Rope Kits			4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m)
		Side Mounting Bracket			Steel Materials
		Ground mounting Quadpod			Stainless Materials
		Rotation Basement
		Remote control kit			DC12V
data update on 20240928
