Products Description

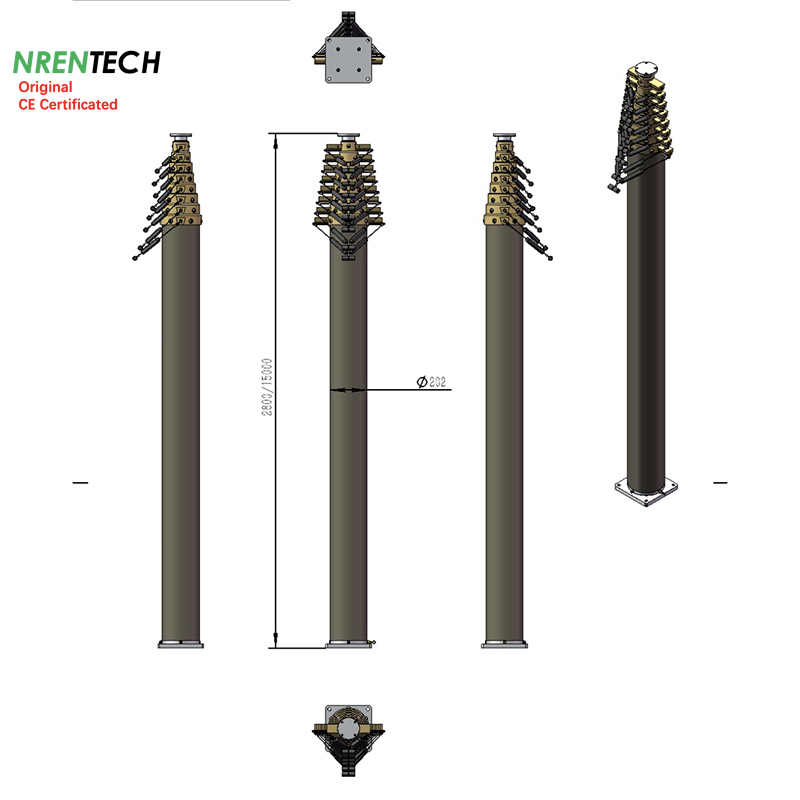

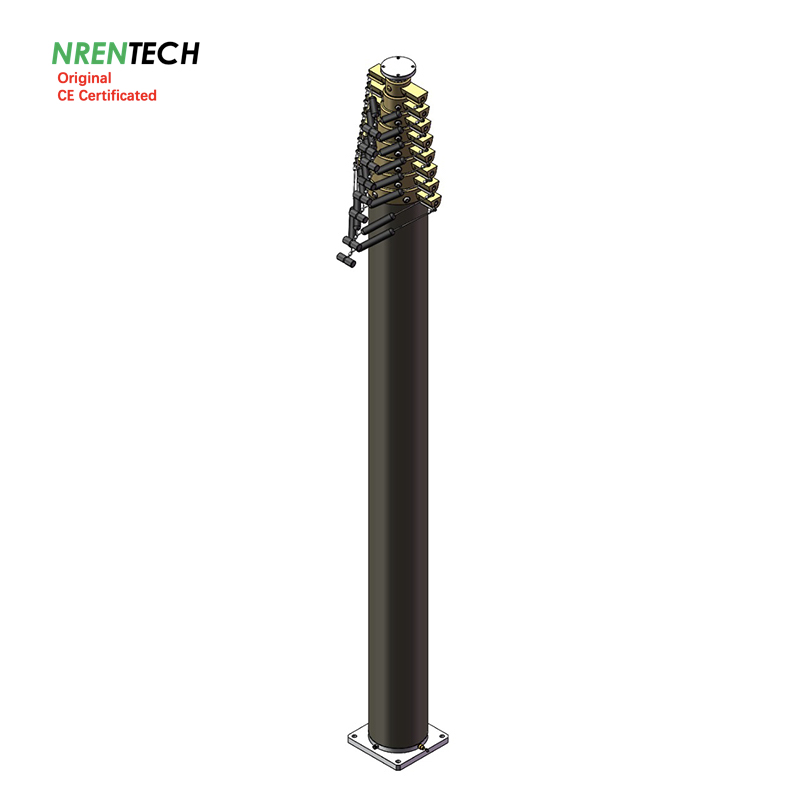

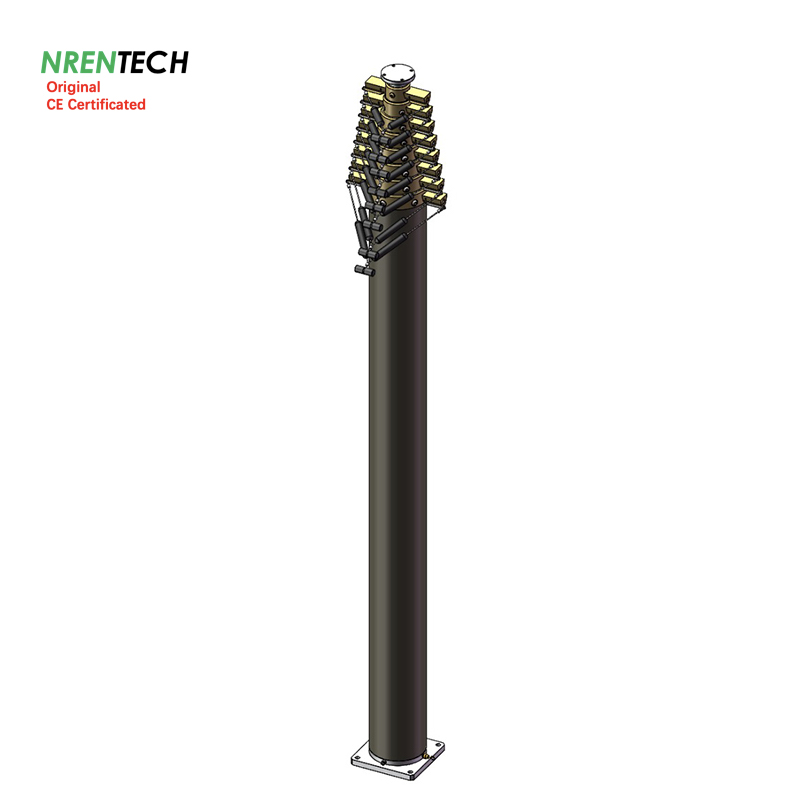

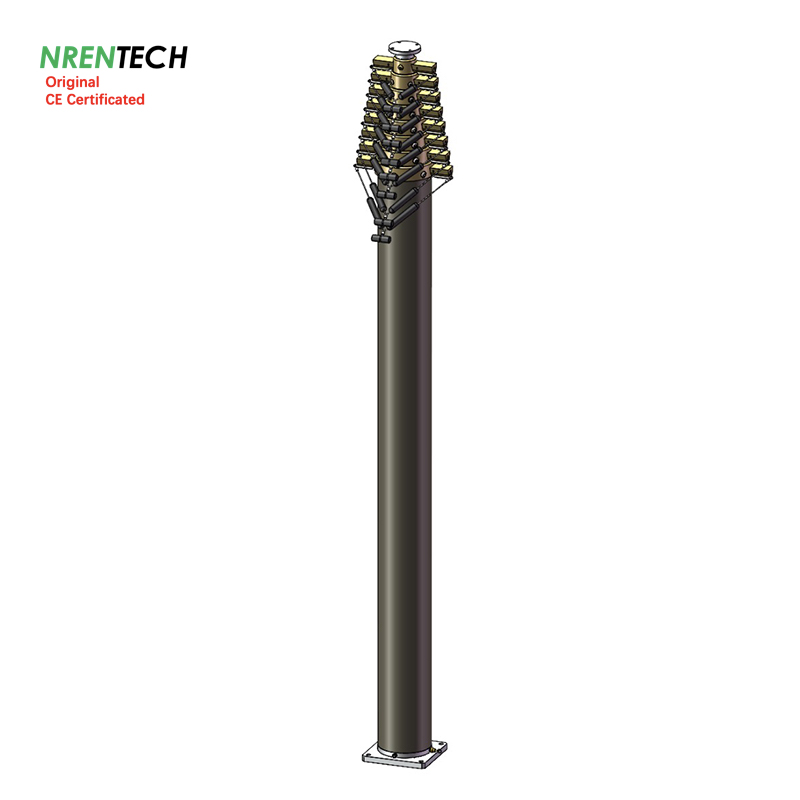

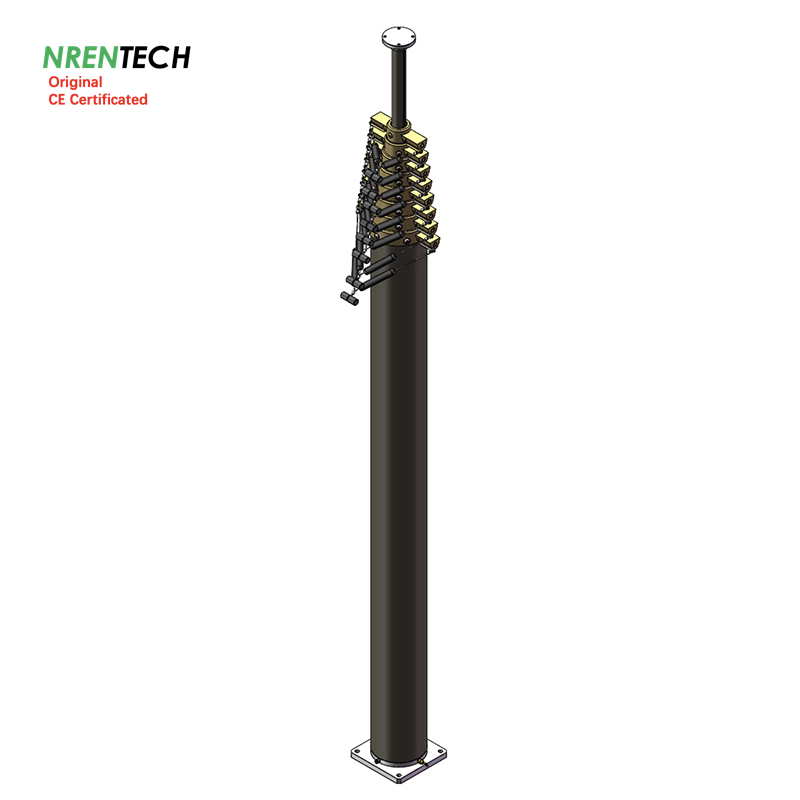

15m Locking Pneumatic Telescopic Mast 30kg payloads
2.8m closed height
Item #: NR-2.8-15-30L-9S-51-202
1> Extended Height: 15m
2> Closed Height: 2.8m
3> Vertical Payloads: 30kg @0.15Mpa/22PSI working air pressure
4> Collar: manual lockable (automatic extension/manual retraction)
5> Number of sections: 9
6> Section diameter: 51mm~202mm
7> Materials: Aluminum alloy 6063T5
8> Mast weight: 138kg approx.
9> Default accessories: top flange, bottom flange, air hose pipe, air control manual, retraction manual tool
10> Charging accessories: electric air compressor, guy wires 3x4, ground mounting tripod, side mounting bracket, remote control kit.
Leading time: 30 days
date update on 20240407
| 15m Lockable Pneumatic Telescopic Mast-30kg Payload | ||||||
| NR-2.8-15-30L-9S-51-202 | ||||||
 | ||||||
| Extended Height | : | 15 | m | 49.2 | ft | |
| Retracted Height | : | 2.8 | m | 9.2 | ft | |
| Vertical Payload | : | 30 | kg | 66 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 9 | ||||
| Top section diameter | : | 51 | mm | 2.0 | in | |
| Basement section diameter | : | 202 | mm | 8.0 | in | |
| Mast Weight | : | 138 | kg | 303.6 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 3x4 (3 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20240407 | ||||||
