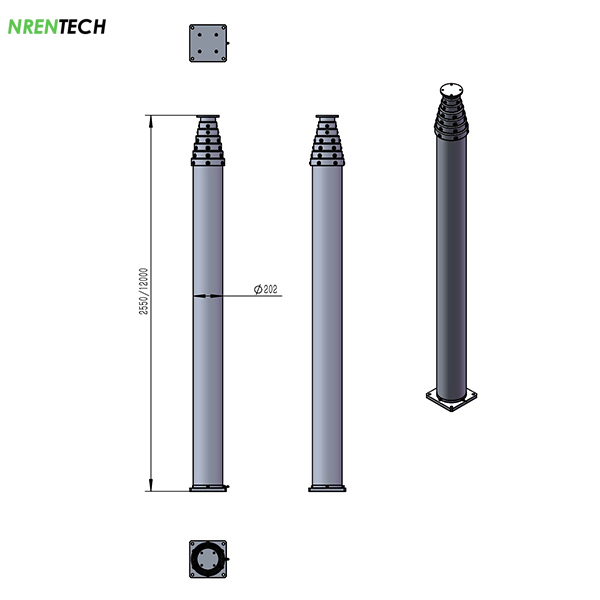

12m Non-lockable Pneumatic Telescopic Mast-70kg payloads
1> Item #: NR-2.55-12-70N-7S-82-202
2> Extended Height: 12m
3> Retractable Height: 2.55m retracted height
4> Vertical Payloads: 70kg
5> Collar type: Non-lockable (automatic extension/retraction)
6> Number of sections: 7
7> Section diameter and thickness: 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm, 202*6mm
8> Materials: Aluminum alloy 6063T6
9> Mast weight: 120kg approx.
10> Working air pressure: 0.2Mpa/29PSI
11> Working temperature: -20~65 Degree Celsius
12> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air controller
13> Charging accessories:
Guying wires kits with mounting spikes 2 layers and 4 wires cach layer, mounting radius 12m from center
Electric air compressor: DC12V, DC24V or AC220V/50Hz
Ground mounting tripod (stainless steel materials)
Side mounting bracket (aluminum materials)
Manufacture time: 20 days
12m Non-lockable Pneumatic Telescopic Mast-70kg payloads
12m Lockable Pneumatic Telescopic Mast-50kg Payloads | ||
1> | Item #: | NR-2.55-12-70N-7S-82-202 |
2> | Extended Height: | 12m |
3> | Retracted Height: | 2.55m |
4> | Maximum Payloads: | 70kg in vertical |
5> | Type: | Non-Lockable, Anti-rotation. automatic extension retraction |
6> | Inside Electric Wires | non |
7> | Number of Sections: | 7 |
8> | Sections’ diameter*Thickness: | 82~202mm |
9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
10> | Working Air Pressure: | 0.2Mpa/29PSI |
11> | Working Temperature: | -25~55 Degrees Celsius |
12> | Mast Weight: | 120kg |
13> | Wind Loads: | 120km/h with guying wires kits (2 layers, 8 wires, 4 mounting pickets, mounting radius 12m) |
14> | Default accessories: | 1x top flange |
1x bottom flange | ||
1x air hose pipe | ||
1x air controller | ||
15> | Optional Accessories: | Ground Mounting Tripods |
Guying Rope Kits with Mounting Spikes | ||
DC12V Electric Air Compressor | ||
AC220V/50Hz Electric Air Compressor | ||
Vehicle Side Mounting Brackets 1 piece per set | ||
Remote Controller Kit |
