Item #: NR2750-12000-200

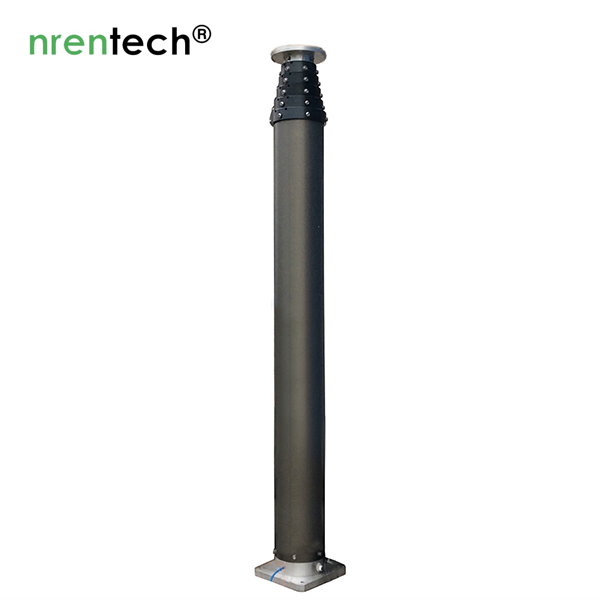

12m Non-Lockable Pneumatic Telescopic Mast
200kg Payloads
12m Non-lockable Pneumatic Telescopic Mast-200kg payloads
1> Item #: NR-2750-12000-200
2> Extended Height: 12m
3> Retractable Height: 2.75m retracted height
4> Vertical Payloads: 200kg
5> Collar type: Non-lockable (automatic extension/retraction)
6> Number of sections: 6
7> Section diameter and thickness: 118*4mm, 140*5mm, 160*5mm, 180*5mm, 202*6mm, 229*7mm
8> Materials: Aluminum alloy 6063T6
9> Mast weight: 155kg approx.
10> Working air pressure: 0.2Mpa/29PSI
11> Working temperature: -20~65 Degree Celsius
12> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air controller
13> Charging accessories:
Guying wires kits with mounting spikes 2 layers and 4 wires cach layer, mounting radius 12m from center
Electric air compressor: AC220V/50Hz
Ground mounting tripod (stainless steel materials)
Side mounting bracket (aluminum materials)
Manufacture time: 20 days
