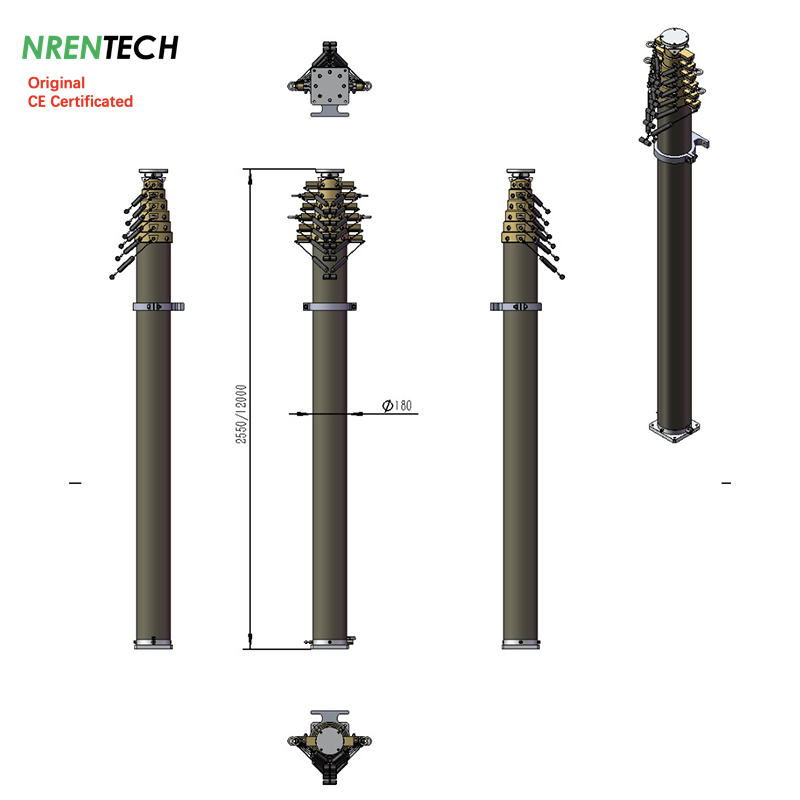

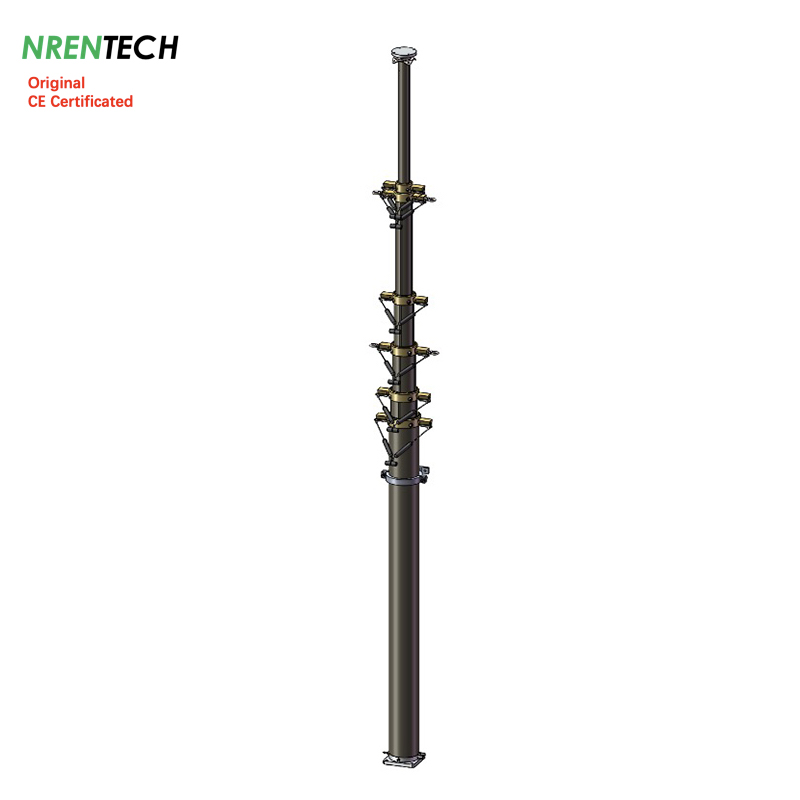

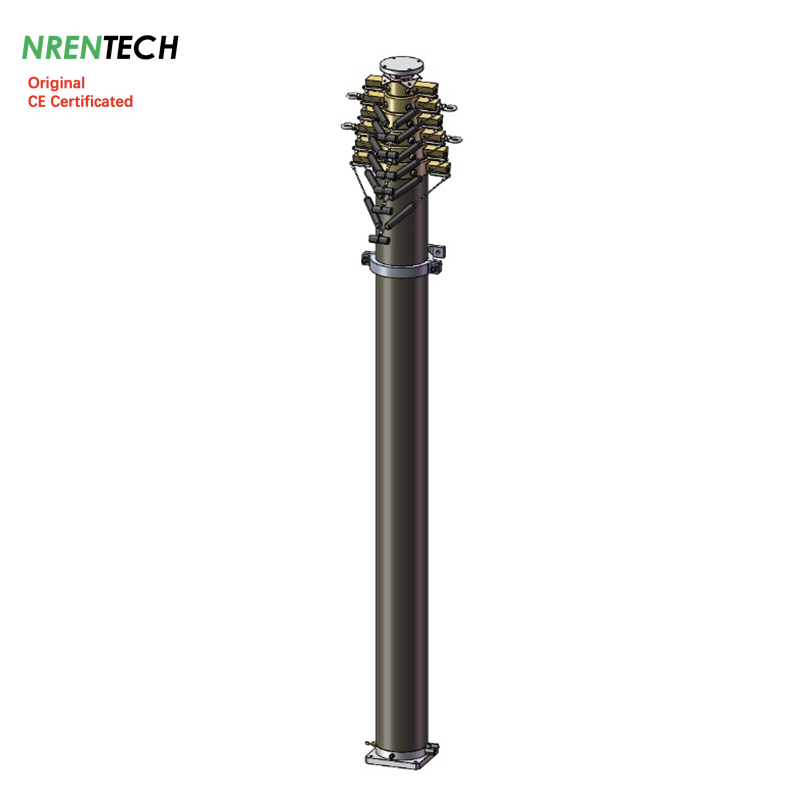

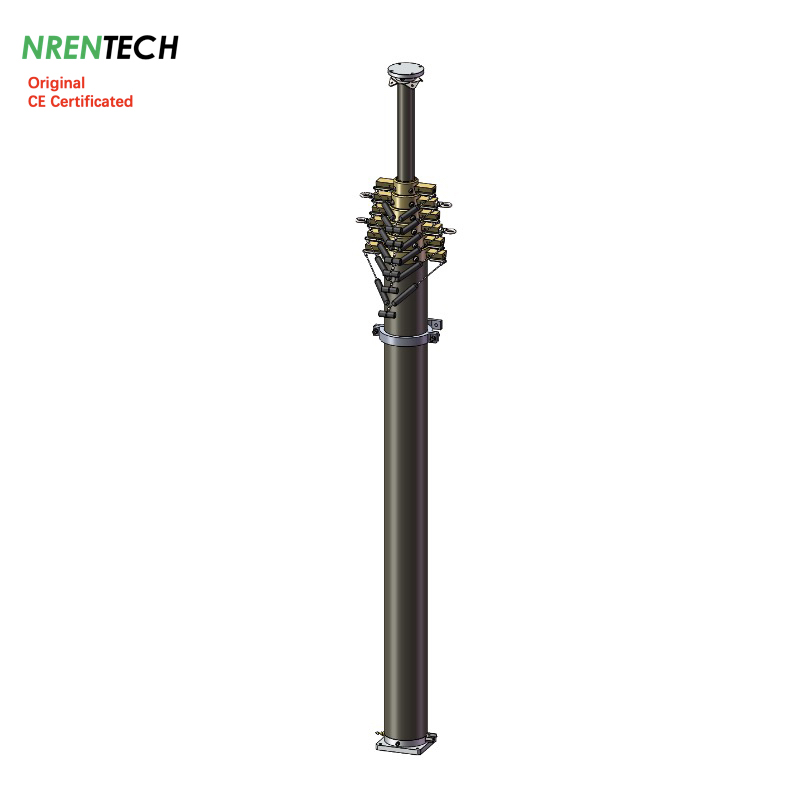

12m Lockable Pneumatic Telescopic Mast 50kg Payload 2.55m Closed Height

Item #: NR-2.55-12-50L-7S-66-180
1> Extended Height: 12m
2> Retracted Height: 2.55m
3> Vertical Payloads: 50kg payload @0.2Mpa/29PSI working air pressure

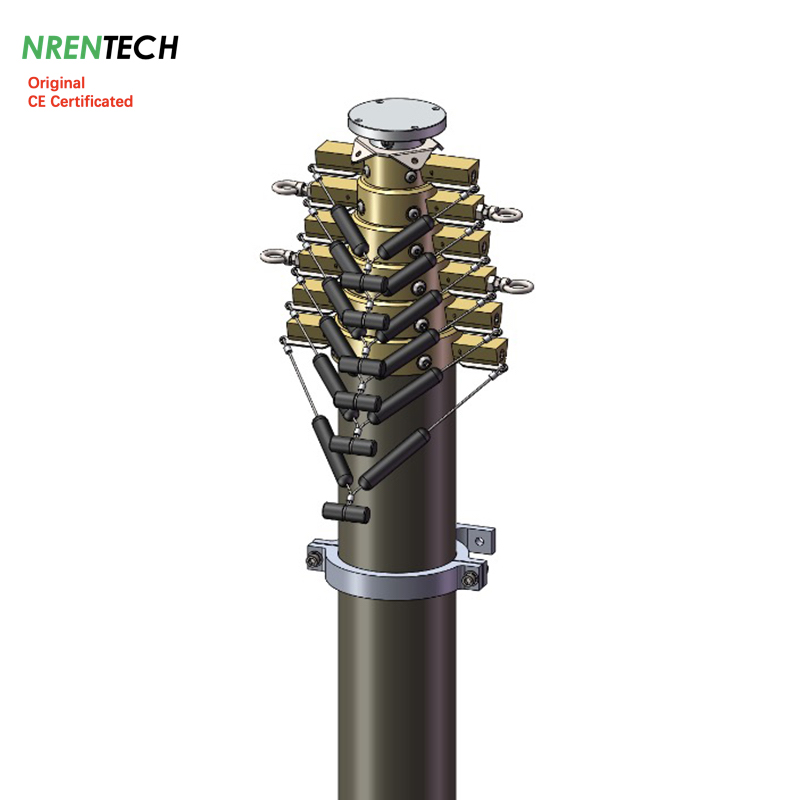

4> Collar type: Locking collar (automatic extension, retraction by manual)
5> Rated working air pressure: 0.2Mpa/29PSI as recommended
6> Number of sections: 7 sections
7> Section diameter: 66mm~180mm
8> Material: Aluminum alloy materials 6063T5, hard anodizing treatment.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, guy ropes mounting plate and eyebolts, 1x retraction operating tool.
10> Mast weight: 98kg
11>Wind load:175N/M^2, 16.9m/s, 60.6kmh, 37.8mph

12> Working temperature: -25°C~60°C.

Optional and Charging accessories:

1> Electric Air Compressor/Compact Electric Air Control Box with Remote Control: DC12V, DC24V, AC220V/50/60Hz

2> Guy Lines Kit (2 layers, 8 ropes/wires, 4 mounting stakes, mounting radius 12m)

3> Side Mounting Bracket NR-S180, aluminum alloy 6061 material

4> Ground Mounting Quadpod NR-Quadpod180

5> Remote Control Kit

6> Manual Rotation Basement

Manufacturing Lead Time: 20 days

Shipping Lead Time(Port to Port): As arranged

Transport Packaging: Seaworthy & Airworthy Packing, Multi-layer Plywood Case (Fumigation-free).

Product Warranty: 2 years

Product data updated as of 20260519.

Product information is subject to change without notice.

‍‍

‍‍

‍‍
