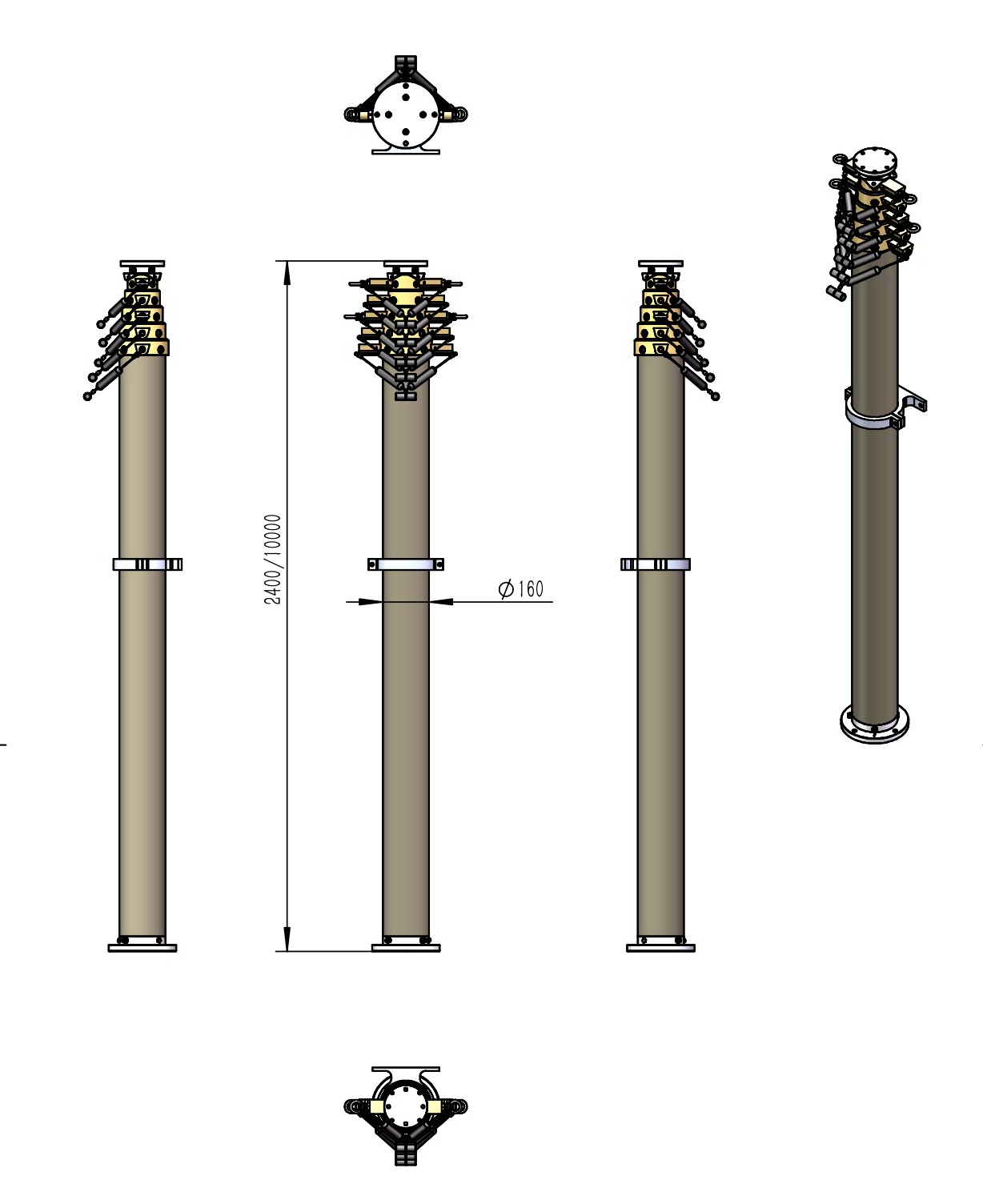

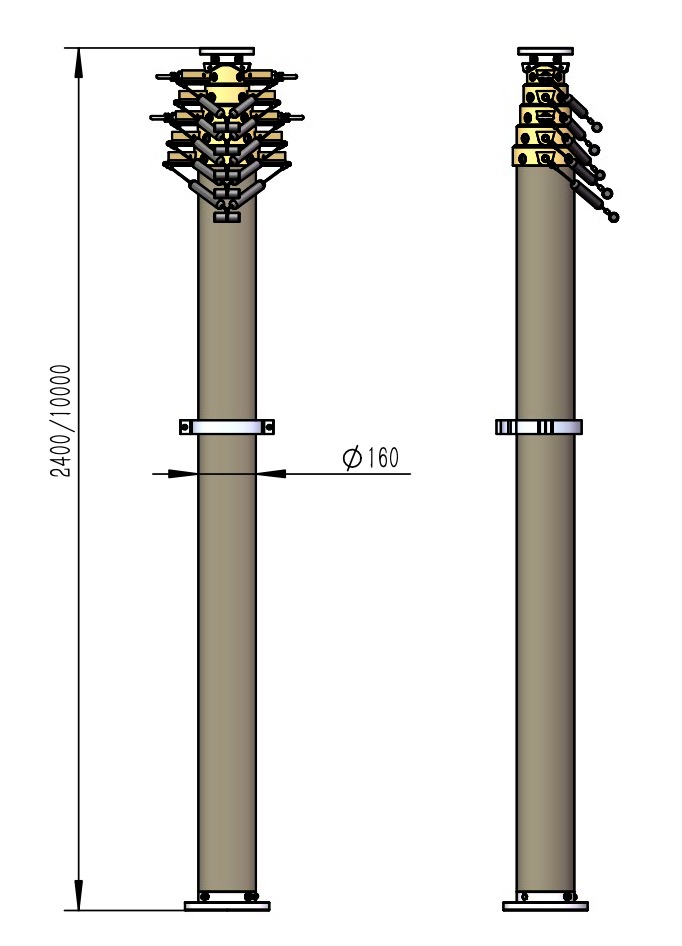

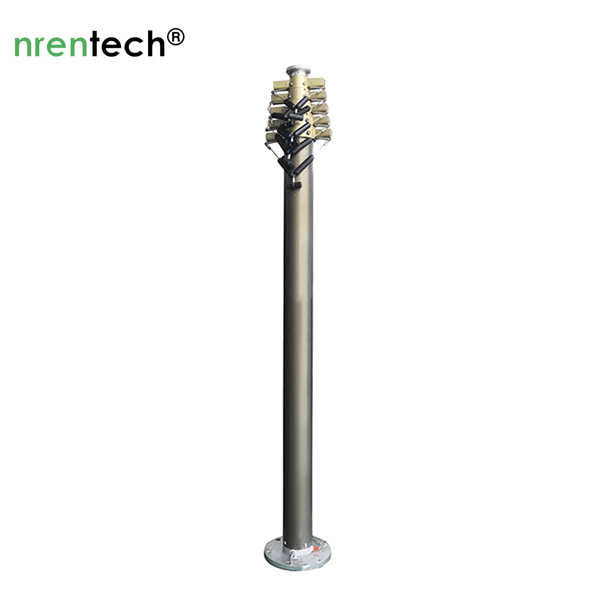

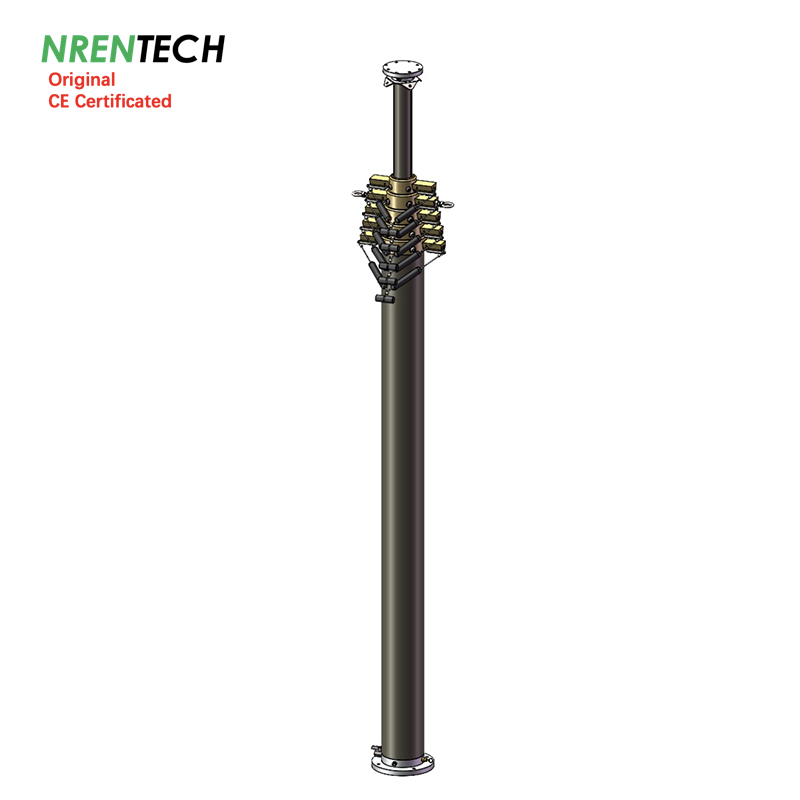

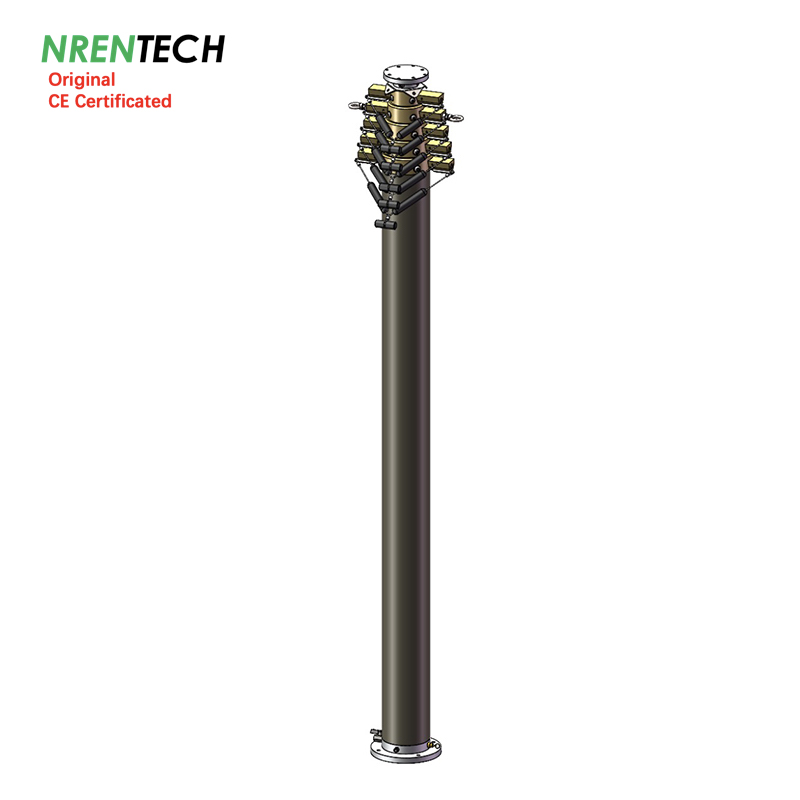

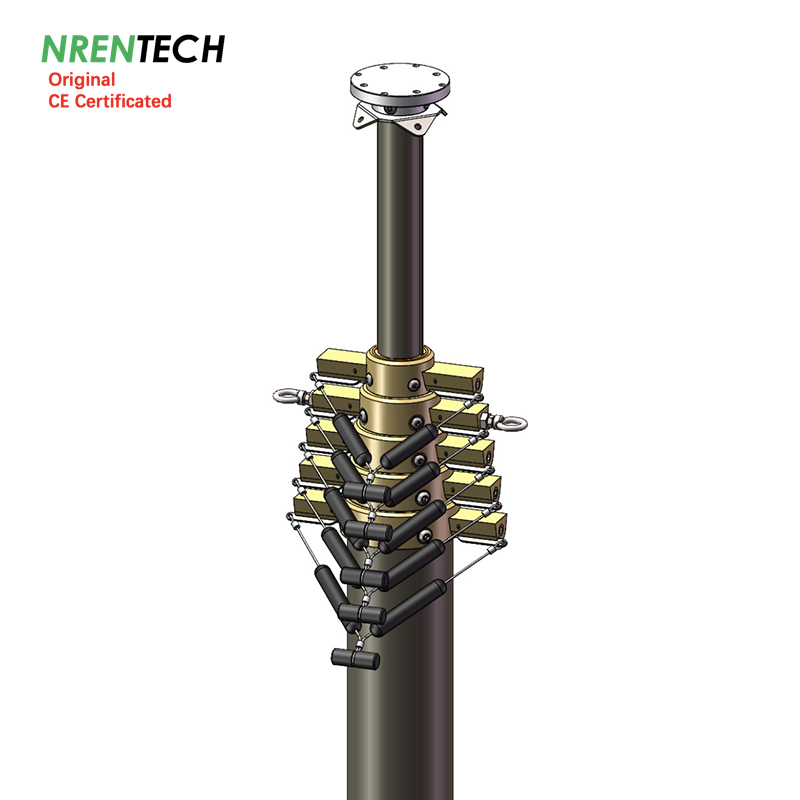

10m Locking Pneumatic Telescopic Mast 2.4m Closed Height-50kg Payloads
Item#: NR-2.4-10-50L-6S-66-160
1> Extended Height: 10m
2> Retracted Height: 2.4m
3> Vertial Payload: 50kg @0.2Mpa/29PSI air pressure
4> Number of sections: 6 sections
5> Section outside diameter * thickness: 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*4mm, 160*5mm
6> Materials: aluminum alloy6063T5
7> Mast weight: 77kg approx.
8> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, guying mounting plate and eyebolts
9> Working air pressure: 0.2Mpa/29PSI recommend
10> Mast working temperature: -25~55 Celsius Degrees
11> Charging accessories:
DC12V air compressor, AC220V/50hz compressor available
vehicle side mounting brackets available
ground mounting tripod bracket or quadpod bracket available
guying ropes kits: 2 layers, 4 ropes each layer, mounting radius 10m
Leading time: 20 days
One year guarantee
the lastest data has been updated on 20250413
10m Locking Pneumatic Telescopic Mast 2.4m Closed Height-50kg Payloads
Item#: NR-2.4-10-50L-6S-66-160
1> Extended Height: 10m
2> Retracted Height: 2.4m
3> Vertial Payload: 50kg @0.2Mpa/29PSI air pressure
4> Number of sections: 6 sections
5> Section outside diameter * thickness: 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*4mm, 160*5mm
6> Materials: aluminum alloy6063T5
7> Mast weight: 73kg approx.
8> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, guying mounting plate and eyebolts
9> Working air pressure: 0.2Mpa/29PSI recommend
10> Mast working temperature: -25~55 Celsius Degrees
11> Charging accessories:
DC12V air compressor, AC220V/50hz compressor available
vehicle side mounting brackets available
ground mounting tripod bracket or quadpod bracket available
guying ropes kits: 2 layers, 4 ropes each layer, mounting radius 10m
Leading time: 20 days
last data updated on 20241204
| 10m Lockable Pneumatic Telescopic Mast-50kg Payload | ||||||
| NR-2.4-10-50L-6S-66-160 | ||||||
 | ||||||
| Extended Height | : | 10 | m | 32.8 | ft | |
| Retracted Height | : | 2.4 | m | 7.9 | ft | |
| Vertical Payload | : | 50 | kg | 110 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 66 | mm | 2.6 | in | |
| Basement section diameter | : | 160 | mm | 6.3 | in | |
| Mast Weight | : | 77 | kg | 169.4 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 10m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials, 40kg approx. | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20241028 | ||||||
