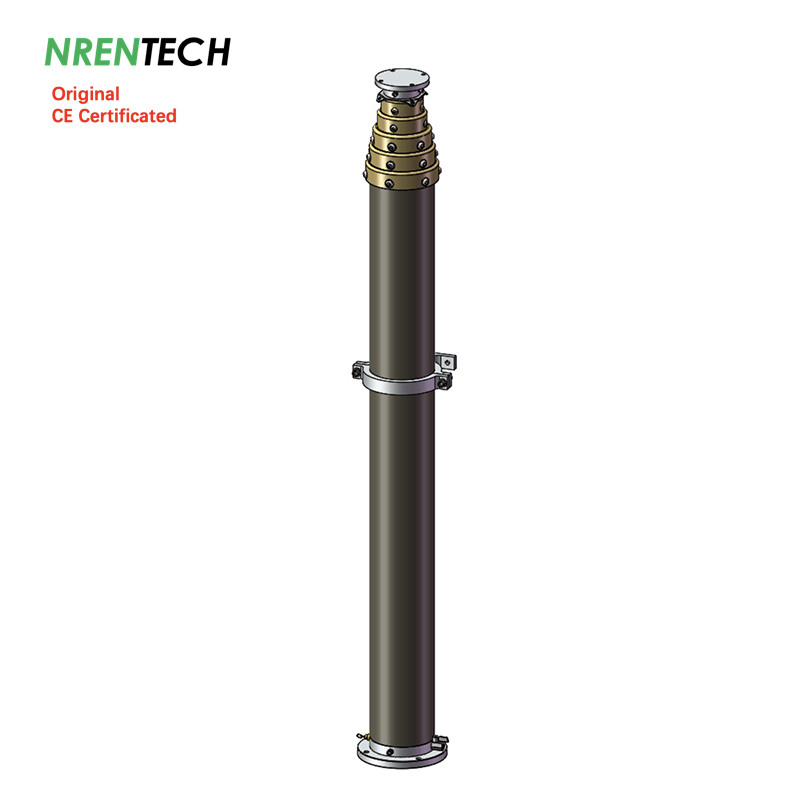

8m Non Lockable Pneumatic Telescopic Mast 100kg payload 2m Retracted Height NR-2.0-8.0-100N-6S-82-180

Item #: NR-2.0-8.0-100N-6S-82-180

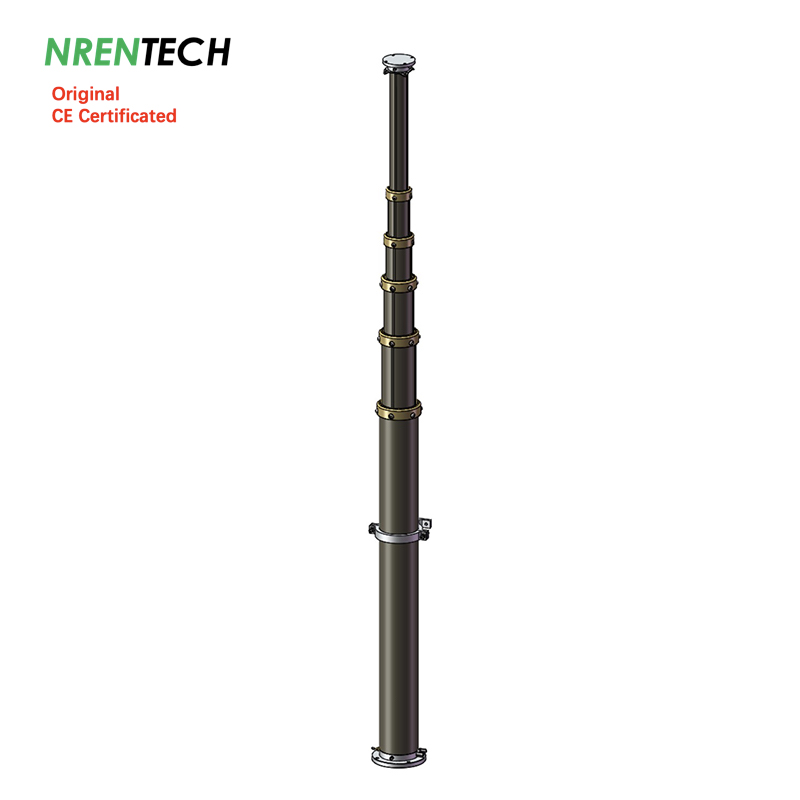

1> Extended Height: 8m Height
2> Nested Height: 2m
3> Vertical Payload: 100 kg @0.2Mpa/29PSI working air pressure

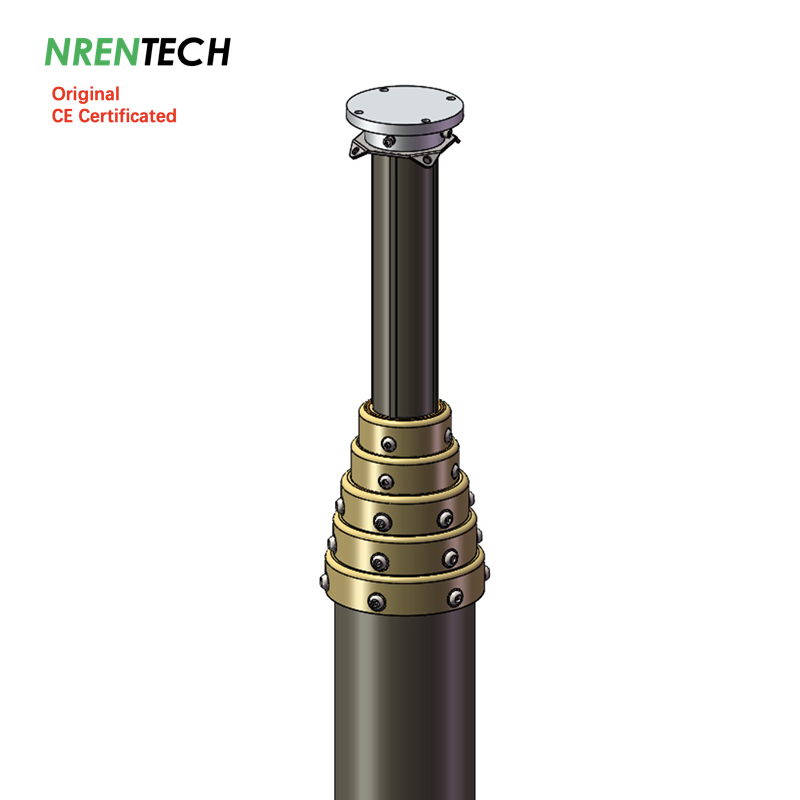

4> Collar: non-lockable collar (automatic extension, automatic retraction, suitable for remote control system)
5> Number of sections: 6 nos.
6> Section diameter: 82mm~180mm
7> Materials: Aluminum alloy 6063T5, hard anodizing treatment
8> Mast weight: 74kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air control valve, 1x air hose pipe.

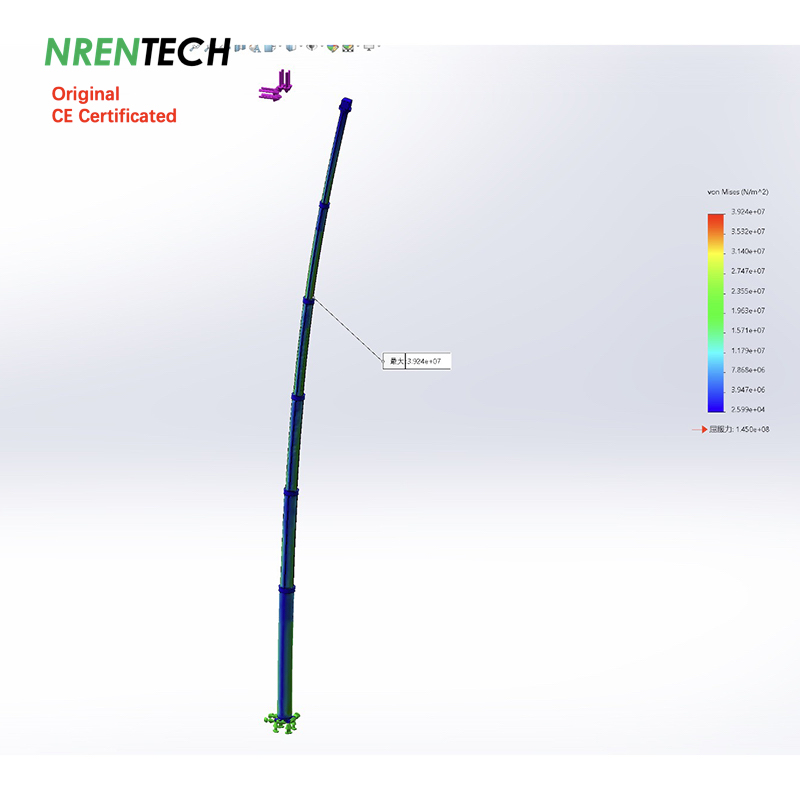

10> Wind Load: 350N/M^2

11> Chargeable accessories:
Electric air compressor 12VDC, 24VDC, AC220V electric air compressor
Side mounting bracket: aluminum side mounting bracket NR-S180, Ground mounting quadpod bracket NR-Quadpod180
Remote contro kit.

Leading time: 30 days
Product warranty: 2 years
the Latest Data Update: 20260319
