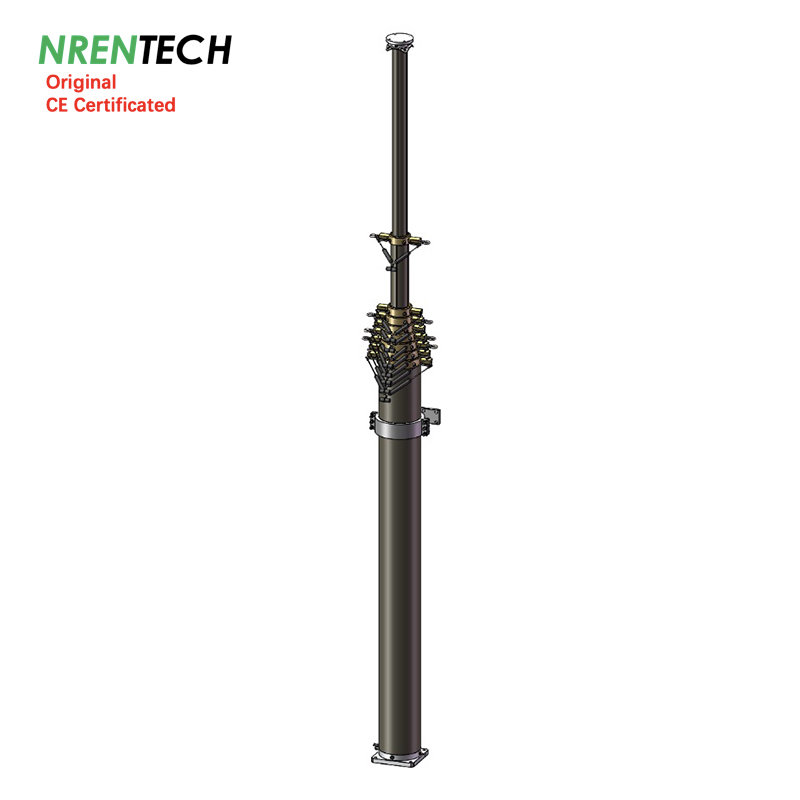

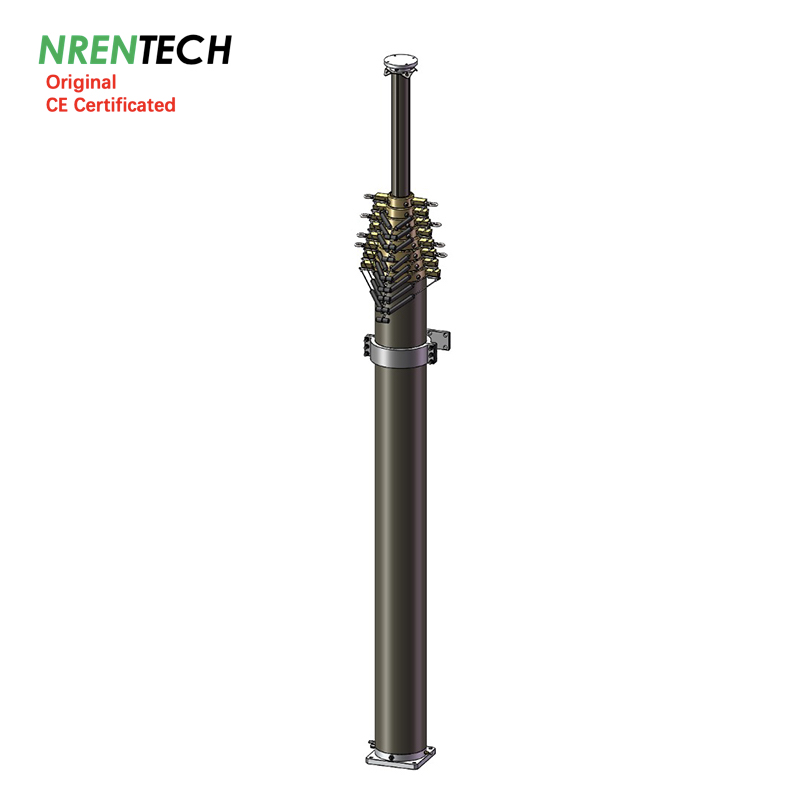

18m Lockable Pneumatic Telescopic Mast 120kg Payload

Item #: NR-3.2-18-120L-9S-98-279

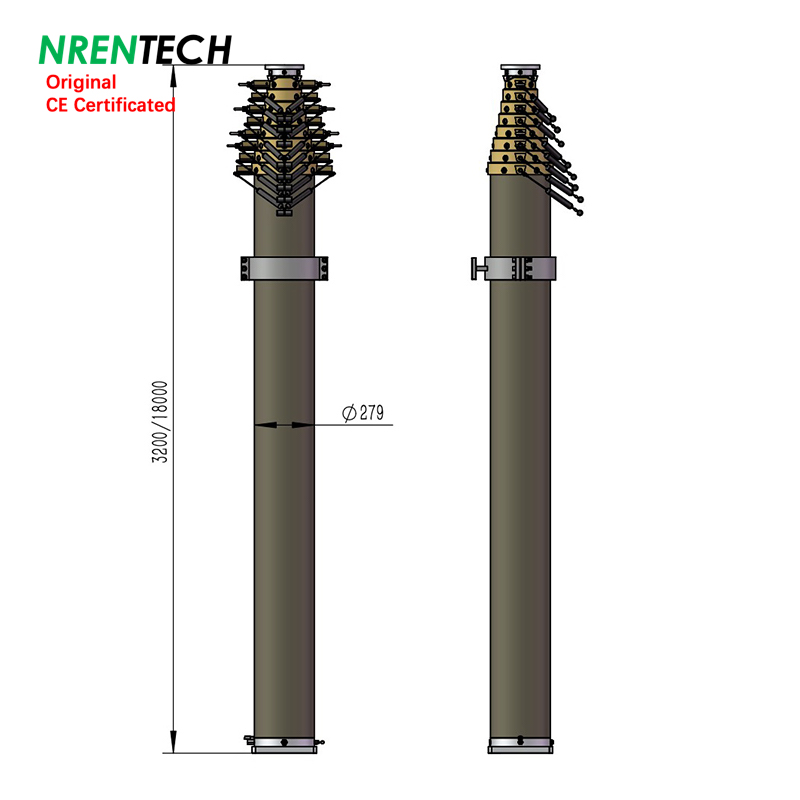

1> Extended Height: 18m

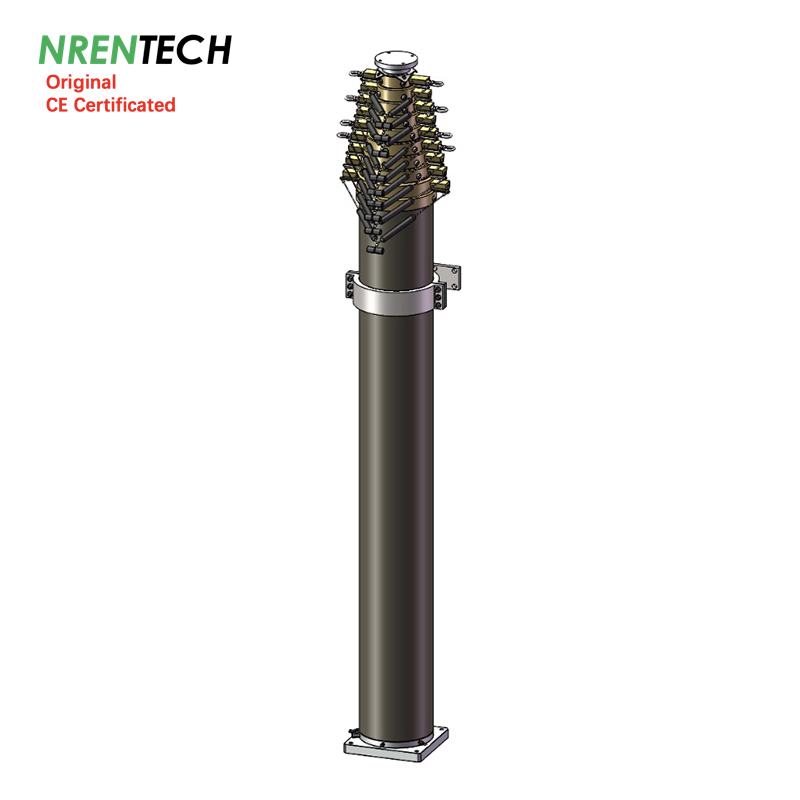

2> Retracted Height: 3.2m
3> Vertical Payload: 120kg @0.25Mpa/36PSI

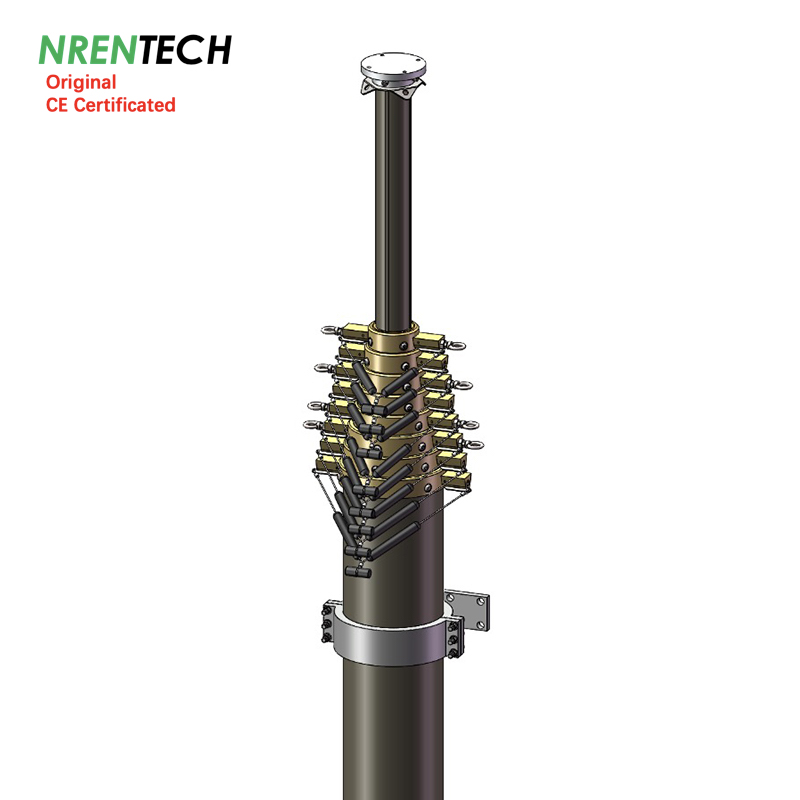

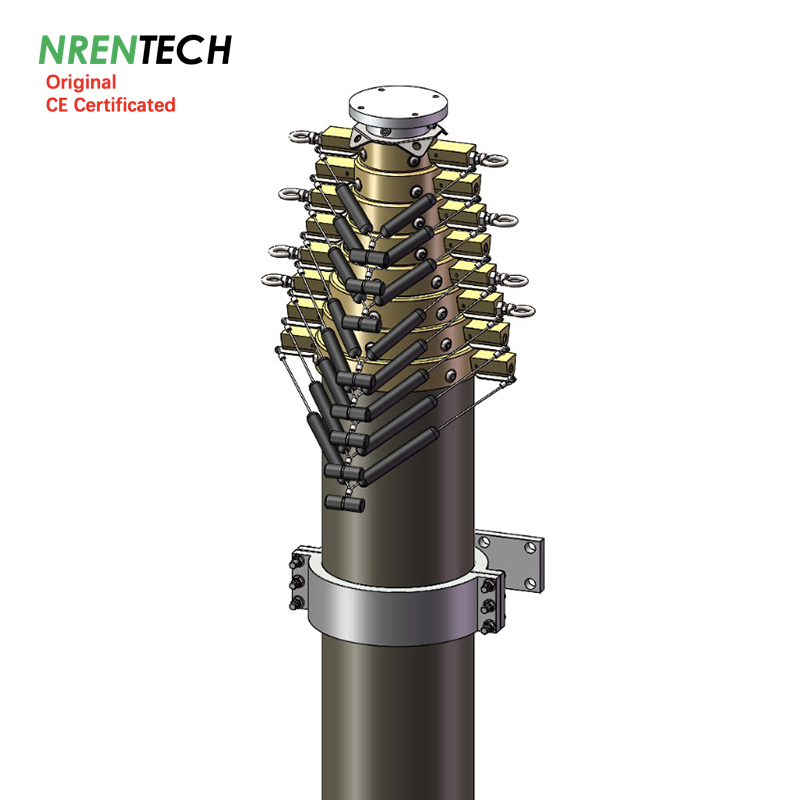

4> Collar type: T lockable collar (automatic extension, retraction by manual operating)
5> Number of sections: 9
6> Section diameter range: 98mm~279mm
7> Materials: Aluminum alloy 6063T5
8> Mast weight: 310kg
9> Default accessories: top flange, bottom flange, air control valve, air hose pipe, retraction operating tool.

10> Chargeable accessories: Side mounting bracket NR-S279, Oil-less electric air compressor, guying lines kit (4 layers, 4 lines each layer, 4 mounting stakes, mounting radius 11~18m), ground mounting quadpod bracket, remote control kit.

Manufacture time: 30 days
Guarantee: 2 years

the latest data has been updated on 20251117

18m Lockable Pneumatic Telescopic Mast-120 kg Payload
NR-3.2-18-120L-9S-98-279
Extended Height	:	18	m	59.04	ft
Retracted Height	:	3.2	m	10.5	ft
Vertical Payload	:	120	kg	264	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Locking (Automatic Extension, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	9
Top section diameter	:	98	mm	3.9	in
Basement section diameter	:	279	mm	11.0	in
Mast Weight	:	310	kg	682	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Retraction operation tool
Optional Accessories	:	Electric air compressor			AC220V/50hz
		Guying Rope Kits			4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 18m)
		Side Mounting Bracket			Steel Materials, 28kg approx.
		Ground mounting Quadpod			Stainless Materials, 60kg approx.
		Rotation Basement			Manual Rotation
		Remote control kit			12VDC
data update on 20251117

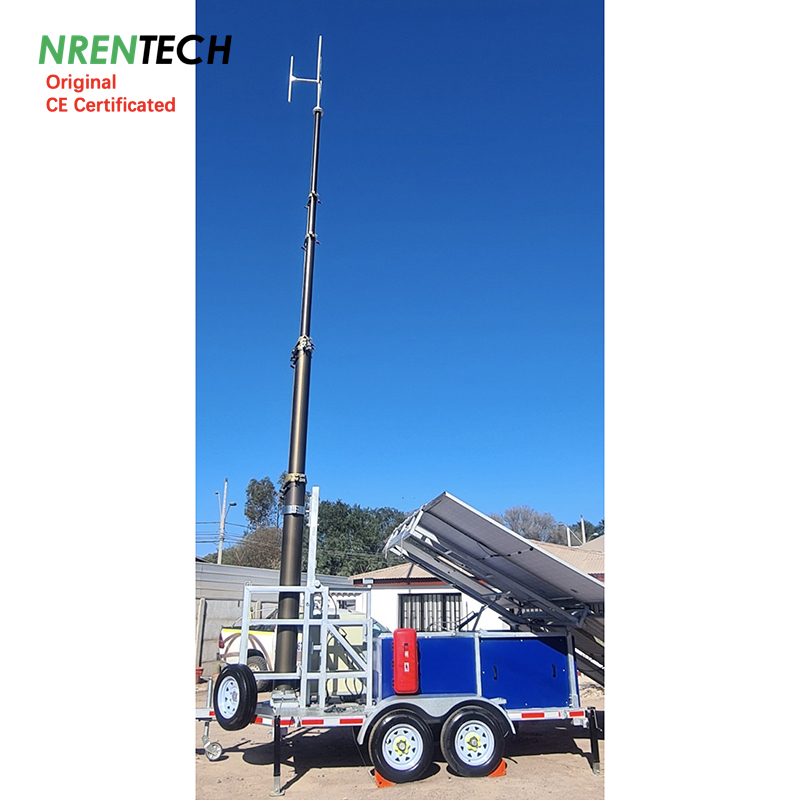

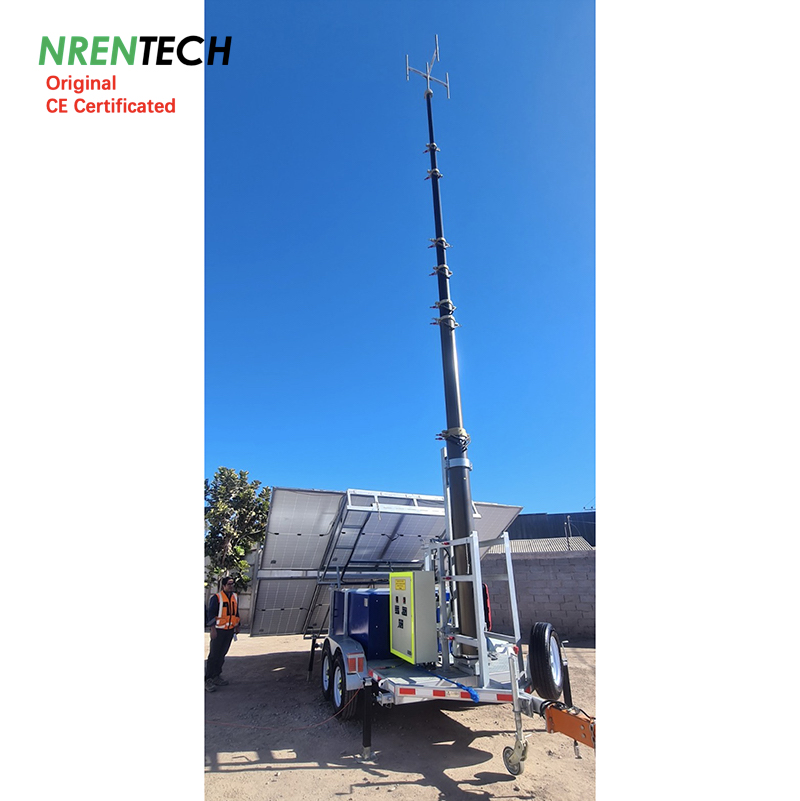

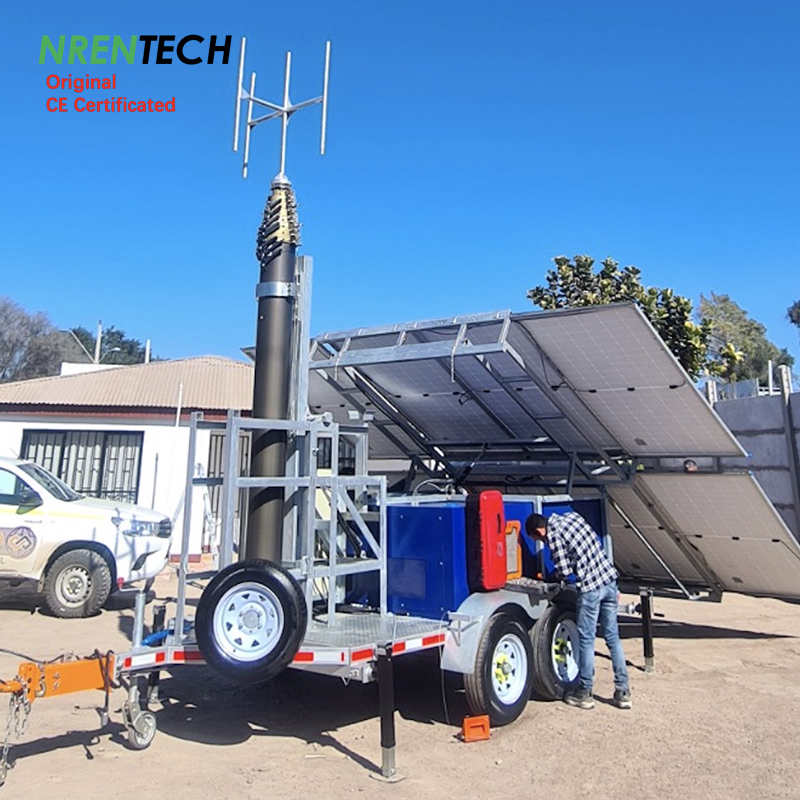

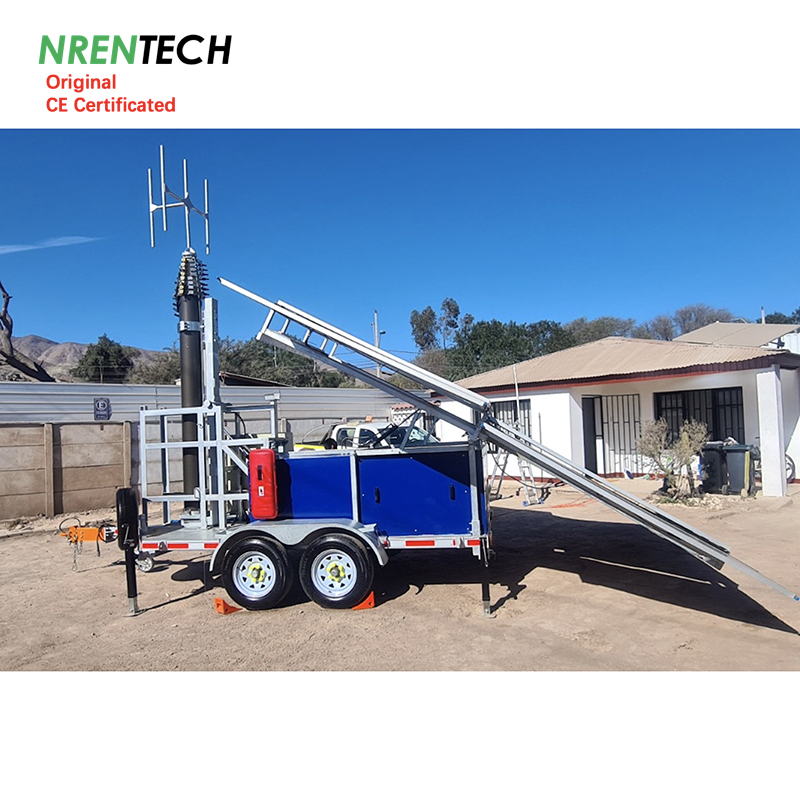

This 18m lockable pneumatic telescopic mast is design for Chlie client for mobile solar antenna tower as below. 3.2m closed height, 120kg payload in vertical.
