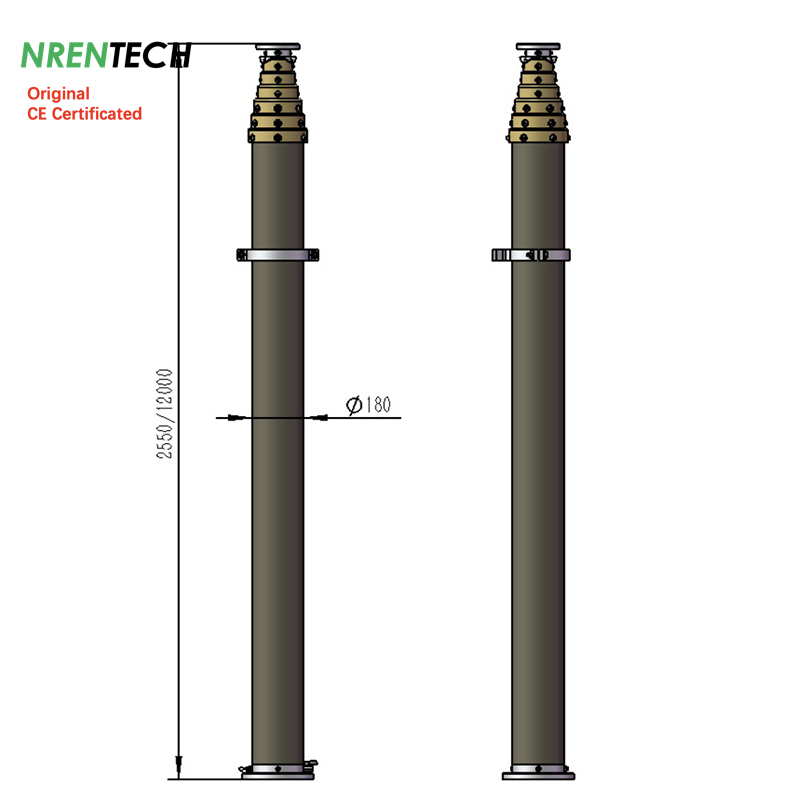

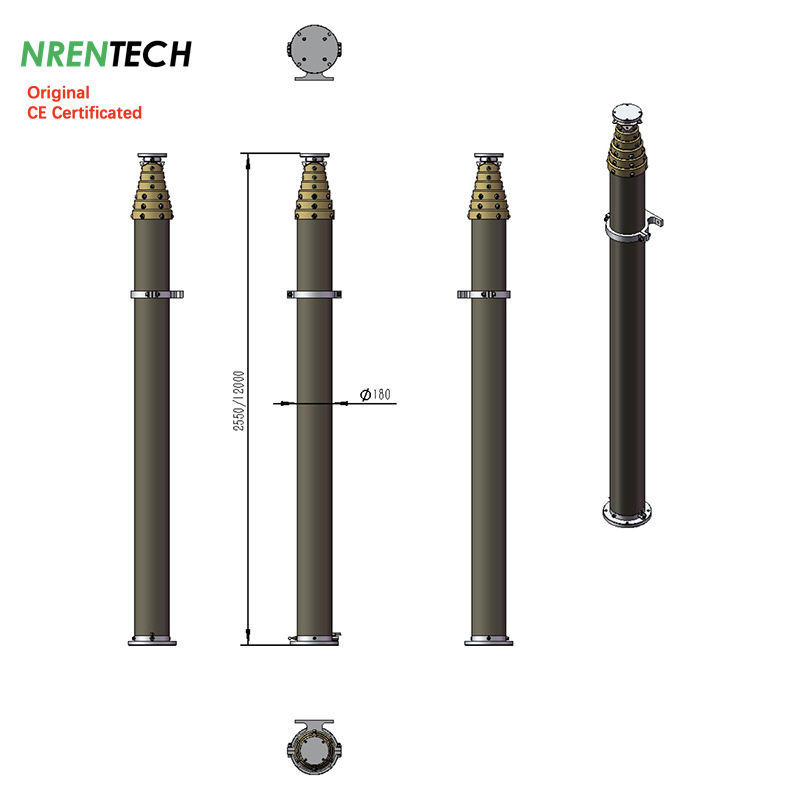

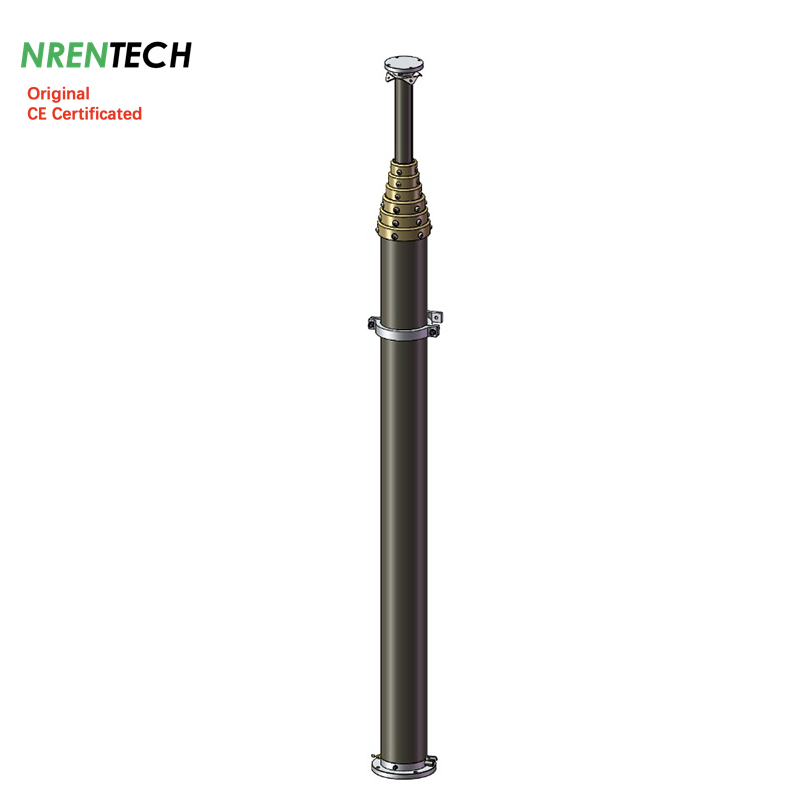

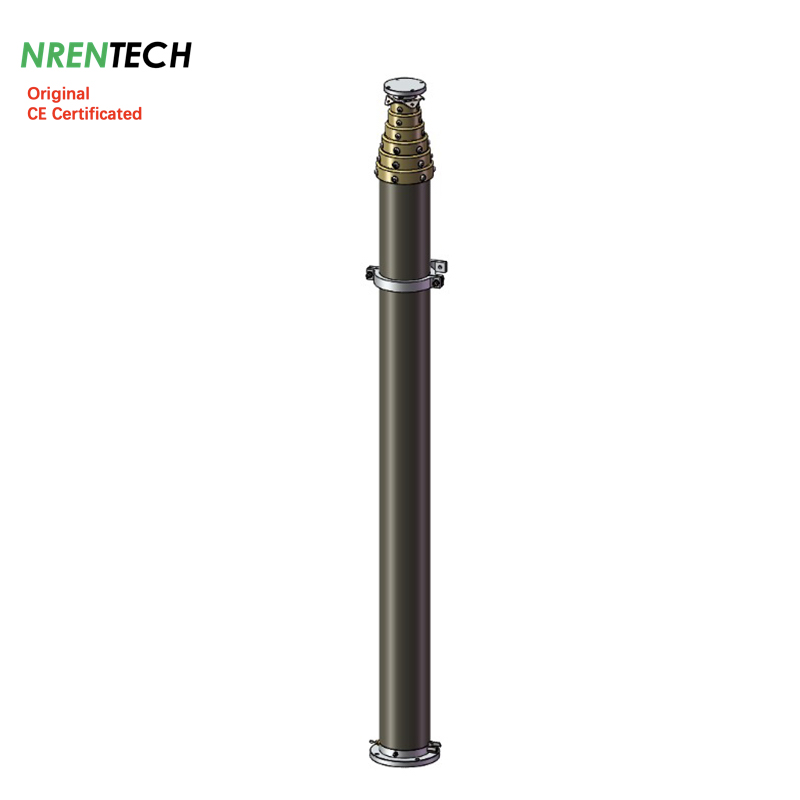

12m Non-lockable Pneumatic Telescopic Mast-50kg payload 2.55m retracted height
Item #: NR-2.55-12-50N-7S-66-180
1> Extended Height: 12m
2> Retractable Height: 2.55m
3> Vertical Payloads: 50kg @0.2Mpa/29PSI
4> Collar type: Non-lockable (automatic extension/retraction, suitable for temporary deployment)
5> Number of sections: 7 pcs
6> Section diameter range: 66~180mm
7> Materials: Aluminum alloy 6063T5, hard anodizing treatment, stainless material
8> Mast weight: 97kg approx.

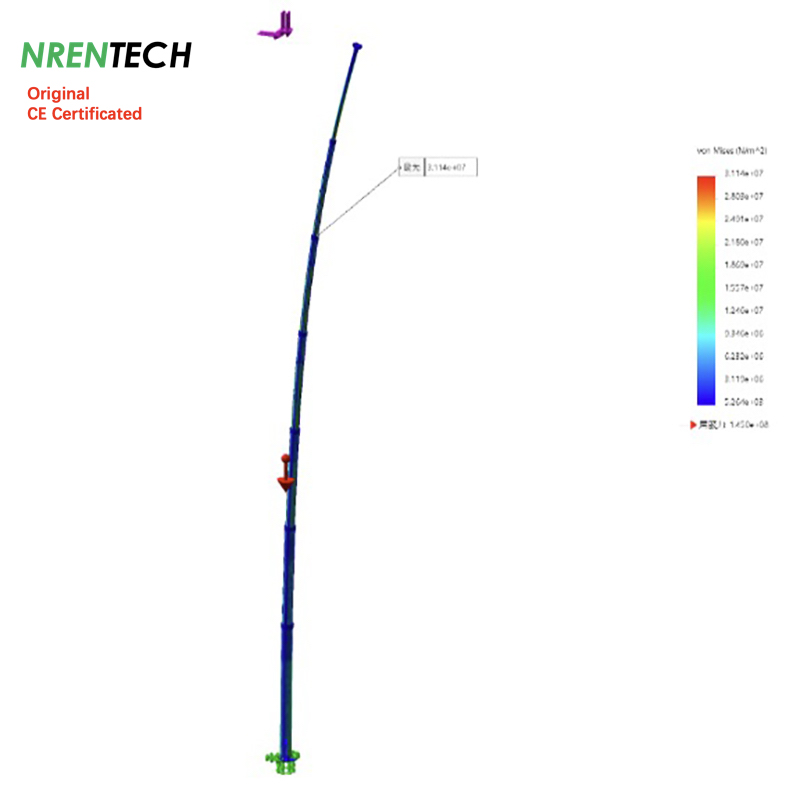

9> Wind Load: 160N/M^2 (56kmh @1m^2 windward area, 50kg vertical payload)
10> Recommend working air pressure: 0.2Mpa/29PSI
11> Working temperature: -25~65 °C
12> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, guy ropes mounting plate.
13> Charging accessories:
Guy ropes/wires kits with mounting stakes 2 layers and 4 wires/ropes cach layer, mounting radius 12m from center
Electric air compressor: DC12V, DC24V or AC220V/50Hz
Ground mounting quadpod (stainless steel materials)
Side mounting bracket (aluminum materials)
Manufacture leading time: 20 days
Guarantee: 2 years
the latest information has been updated on 20260318
12m Non-lockable Pneumatic Telescopic Mast-50kg payload
| 12m Non Lockable Pneumatic Telescopic Mast-50kg Payload | ||
| 1> | Item #: | NR-2.55-12-50N-7S-66-180 |
| 2> | Extended Height: | 12m |
| 3> | Retracted Height: | 2.55m |
| 4> | Maximum Payloads: | 50kg in vertical |
| 5> | Type: | Non-Lockable, Anti-rotation. automatic extension retraction |
| 6> | Inside Electric Wires | non |
| 7> | Number of Sections: | 7 |
| 8> | Sections’ diameter*Thickness: | 66~180mm |
| 9> | Materials: | Aluminum Alloy 6063T5, hard anodizing treatment, Stainless steel fasteners |
| 10> | Working Air Pressure: | 0.2Mpa/29PSI |
| 11> | Working Temperature: | -25~55 Degrees Celsius |
| 12> | Mast Weight: | 97kg |
| 13> | Wind Loads: | 160N/M^2 (without guy lines)/ 56kmh with 50kg payload, 1 m^2 windward area. |
| 14> | Default accessories: | 1x top flange |
| 1x bottom flange | ||
| 1x air hose pipe | ||
| 1x air controller | ||
| 15> | Optional Accessories: | Ground Mounting Tripods |
| Guying Rope Kits with Mounting Spikes | ||
| DC12V Electric Air Compressor | ||
| AC220V/50Hz Electric Air Compressor | ||
| Vehicle Side Mounting Brackets 1 piece per set | ||
| Remote Controller Kit | ||
