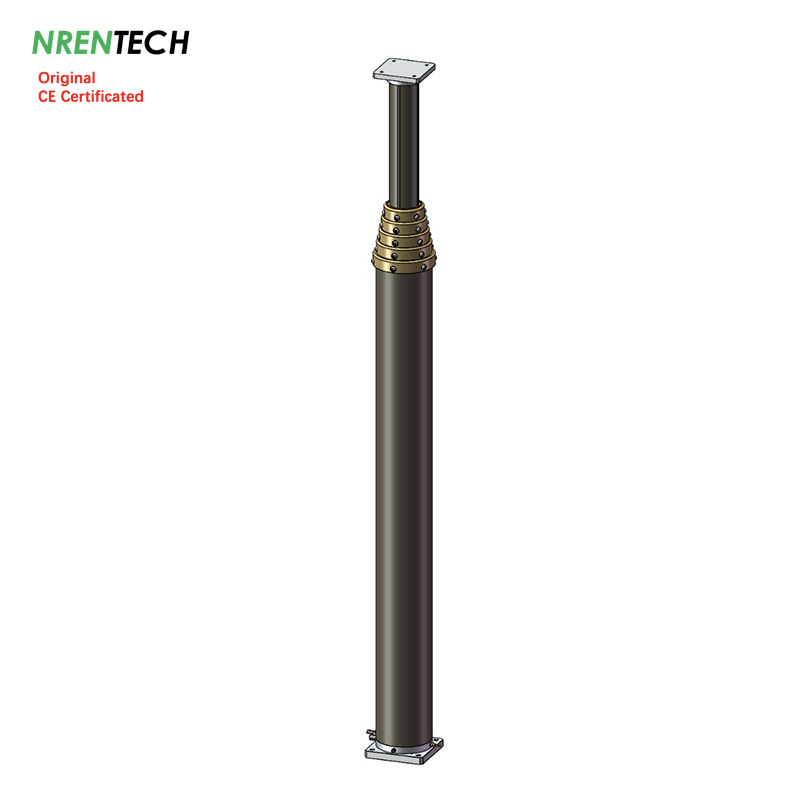

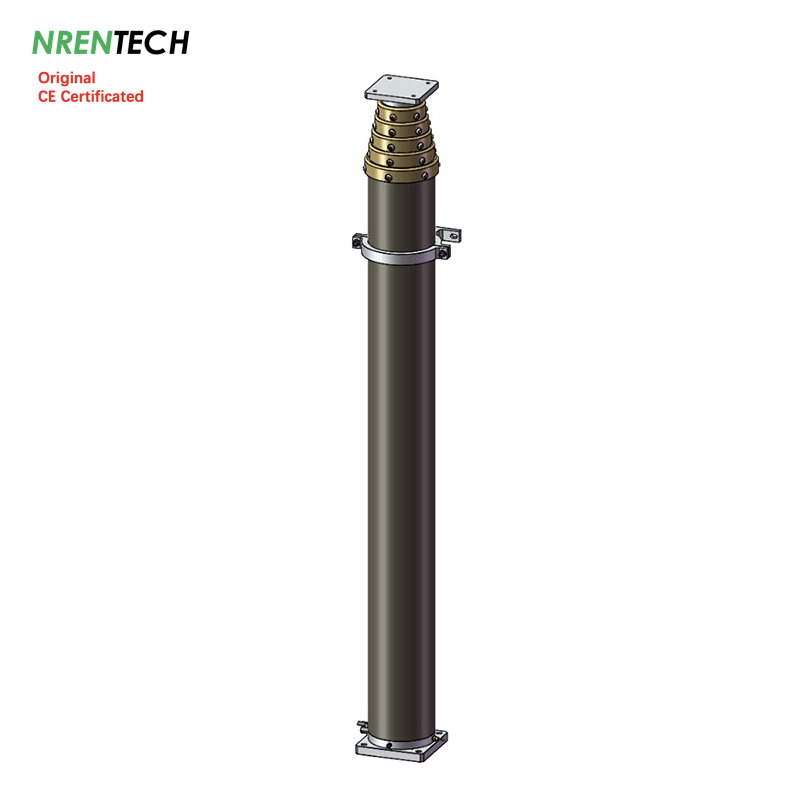

10m Non Lockable Pneumatic Telescopic Mast 200kg payload NR-2.4-10-200N-6S-118-229
❤ Add to collection

10m Non Lockable Pneumatic Telescopic Mast 200kg payload NR-2.4-10-200N-6S-118-229

10m Non Lockable Pneumatic Telescopic Mast 200kg payload
Item #: NR-2.4-10-200N-6S-118-229

1> Extended Height: 10m Height
2> Nested Height: 2.4m
3> Vertical Payload: 200 kg @0.25Mpa/36PSI working air pressure
4> Collar: non-lockable collar (automatic extension, automatic retraction)
5> Number of sections: 6 nos.
6> Section diameter: 118mm~229mm
7> Materials: Aluminum alloy 6063T5
8> Mast weight: 138kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air control valve, 1x air hose pipe.
10> Chargeable accessories:
Electric air compressor AC220V
Side mounting bracket: aluminum side mounting bracket
Ground mounting quadpod bracket
Remote contro kit.

Leading time: 30 days
Product warranty: 2 years

the Latest Data Update: 20260115

U.S.＄0.00
0.00
U.S.＄0.00
U.S.＄0.00
Weight：0.000KG
Quantity：
(Inventory: 0)
Buy now
Add to cart
Products Description

10m Non Lockable Pneumatic Telescopic Mast 200kg payload
Item #: NR-2.4-10-200N-6S-118-229

1> Extended Height: 10m Height
2> Nested Height: 2.4m
3> Vertical Payload: 200 kg @0.25Mpa/36PSI working air pressure
4> Collar: non-lockable collar (automatic extension, automatic retraction)
5> Number of sections: 6 nos.
6> Section diameter: 118mm~229mm
7> Materials: Aluminum alloy 6063T5
8> Mast weight: 138kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air control valve, 1x air hose pipe.
10> Chargeable accessories:
Electric air compressor AC220V
Side mounting bracket: aluminum side mounting bracket
Ground mounting quadpod bracket
Remote contro kit.

Leading time: 30 days
Product warranty: 2 years

the Latest Data Update: 20260115

10m Non Lockable Pneumatic Telescopic Mast 200kg payload
Item #: NR-2.4-10-200N-6S-118-229

1> Extended Height: 10m Height
2> Nested Height: 2.4m
3> Vertical Payload: 200 kg @0.25Mpa/36PSI working air pressure
4> Collar: non-lockable collar (automatic extension, automatic retraction)
5> Number of sections: 6 nos.
6> Section diameter: 118mm~229mm
7> Materials: Aluminum alloy 6063T5
8> Mast weight: 138kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air control valve, 1x air hose pipe.
10> Chargeable accessories:
Electric air compressor AC220V
Side mounting bracket: aluminum side mounting bracket
Ground mounting quadpod bracket
Remote contro kit.

Leading time: 30 days
Product warranty: 2 years
the Latest Data Update: 20260115
